Jet Pulse Bag House Filter
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Capacity:
6000 -54000(m³/h)
Material:
Electric Power, Metallurgy, Chemical And Building Materials Industry
Motor Type:
AC Motor
Spare Parts:
Supply All Using Life
Voltage:
220V/380V/440
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Export standard container or as customers' requirements
Delivery Time
30 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set / Sets per Month
Product Description

Dust Collection System for Clinker / Bag Filter Manufacturers



Dust Collector Introduction:

Bag filter is a kind of dry dust filtration device. Our company can provide design, manufacture, and installation one-stop service for bag filter. Our product range mainly include bag filter, single bag filter, pulse bag filter, mechanical reverse air bag filter, wet bag filter and bag filter parts.



Application of Bag Filter:

Electric power, metallurgy, chemical and building materials industry



Dry Type Industrial Dust Collection System For Clinker / Bag Filter 0



Bag filter Structure:

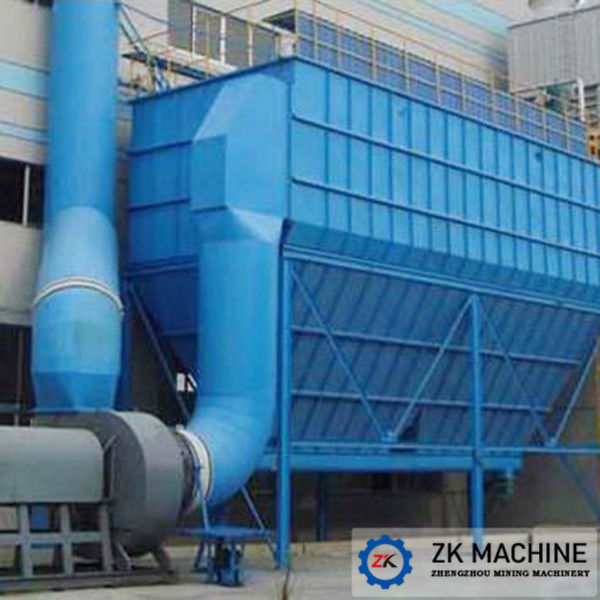

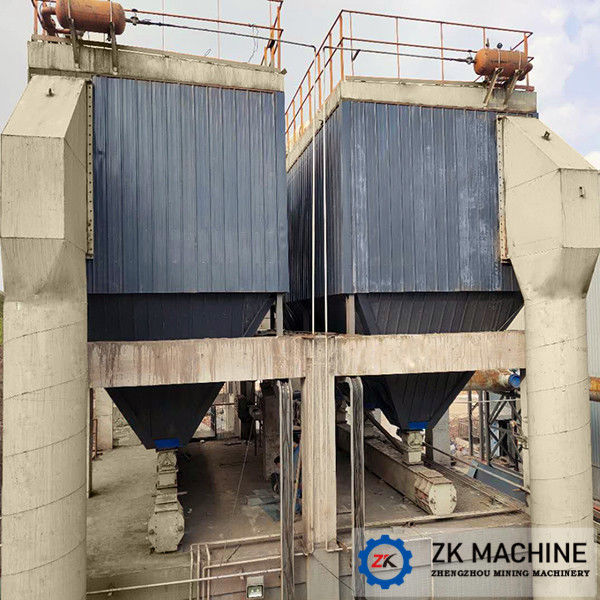

Bag filter is composed of supporting structure, dust bucket, middle box, upper box, filter bag, frame, injection and clean device, PLC control system. Middle box has many compartment, when working, the air content dust will injected to each dust hopper, The big size dust will drop in the bottom of the bucket due to lower air speed and impact by bucket. The fine size dust will float to each bags, and separate at outside of the bags, then drop to the bottom hopper, the cleaned air will release air through the exhaust pipe.



Dry Type Industrial Dust Collection System For Clinker / Bag Filter 1



Dust Collector Feature and Advantage:

1.New and advanced dust removing concept. No air pipe. Pulse valve is assembled at the side the chamber shell or top. No need to disassemble and assemble the air pipe when replacing the bags.

2.High performance pulse is applied to replace many smaller pulse to reduce the maintenance as much as possible.

3.Multi-chamber and off-line dust removing. Long life of filter bag.

4.Available for high density dust containing air collection, for example, O-Sepa separator, the dust content of which will reach 1000g/Nm3.

5.Air tank will reduce the pressure decrease caused by equipment.



Dry Type Industrial Dust Collection System For Clinker / Bag Filter 2



Technical Data:



Kiln type Air volume(m3) Filtration velocity (m/min) Filter area(m2) Equipment resistance(pa) Bag size(mm) Bag quantity Cleaning method
ZM100 6000-7200 1-1.2 100 1200 Φ130 100 pulse cleaning
ZM120 7200-8840 1-1.2 120 1200 Φ130 100 pulse cleaning
ZM150 8000-10800 1-1.2 150 1200 Φ130 100 pulse cleaning
ZM200 12000-14400 1-1.2 200 1200 Φ130 200 pulse cleaning
ZM250 15000-18000 1-1.2 250 1200 Φ130 200 pulse cleaning
ZM300 18000-36000 1-1.5 300 1200 Φ130 200 pulse cleaning
ZM350 21000-42000 1-1.5 350 1200 Φ130 200 pulse cleaning
ZM400 24000-48000 1-1.5 400 1200 Φ130 200 pulse cleaning
ZM450 27000-54000 1-1.5 450 1200 Φ130 200 pulse cleaning
Model PPC128-6 PPC128-9 PPC128-10 PPC128-2×6 PPC128-2×7 PPC128-2×8
Volume(m³/h) 67300 100900 112100 134600 157000 179400
Air speed(m/min) 1.2-2.0(Speed varies at different dust points)
Filtration area(㎡) 935 1402 1558 1869 2181 2492
Net filtration area(㎡) 779 1246 1402 1713 2025 2336
No. of bag(pc) 768 1152 1280 1536 1792 2084
Resistance(Pa) 1470-1770
Minus pressure(Pa) 7000
Dust content at inlet(g/m³) <1300
Dust emission(g/m³) ≤0.1
Compressed air Pressure(Pa) (5-7)×105

  Air consumption 3.6 5.4 6 7 8.3 9.5
  (m³/min)
Pulse valve Qty(pc) 12 18 20 24 28 32
Size 2-1/2″
Elevation valve Qty(pc) 6 9 10 12 14 16
  Size(mm) Valve Φ725,air tank Φ100
Discharge device YJD-26 Outlet 300×300mm Capacity 24m³/h Double flap valve 305×915
Screw conveyor Model Dia. Φ300,capacity 21m³/h N/A
Gearbox XWD2.2-5-1/43,power 2.2Kw N/A
Air slide Air slide 250mm,flow rate 2.0m³/㎡, Pressure 6860pa,If the dust content exceeds 700g/m³ at inlet, bag filter with big screw conveyor should be considered.
Bag size and material Dia.×lengthΦ130×3050,Gross weight of polyethylene felt 450g/㎡,temperature 120℃
Insulation area(㎡) 125 196 205 223 247 262
Total weight(approx.)(Kg) 24120 31680 34680 43920 52680 60000
Note 1: Net filtration area means the area of one chamber during dust removing.
2: The compressed air consumption is based on supply of compressed air pipe from an air compression station. The consumption should be considered to be 1.3 times more if the supply is provided by an independent air compressor.
