High Quality Calcination Rotary Kiln For Lime Dolomite Clinker ISO CE Certificated

High Quality Calcination Rotary Kiln For Lime Dolomite Clinker ISO CE Certificated

Product Details:

Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: According to different models

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month
Get Best Price Contact Now

Detail Information

Product Name: Rotary Kiln For Lime,Dolomite Clinker Rotary Kiln, Rotary Kiln Manufacturer Condition: New
Warranty: 12 Months Capacity: 180-10000t/h
Material: Lead And Zinc Mineral Raw Material After-sales Service Provided: Engineers Available To Service Machinery Overseas
Motor Type: AC Motor Voltage: 220V/380V/440V
Spare Parts: Supply All Using Life
High Light:

calcination rotary kiln

,

vertical shaft kiln

Product Description

High Quality Calcination Rotary Kiln For Lime Dolomite Clinker ISO CE Certificated





Dolomite Rotary Kiln Introduction:

Dolomite rotary kiln is designed according to dolomite calcination characters and Pidgeon process requirement. That is the key equipment in the calciantion process. The dolomite produced by rotary kiln with stable quality, high activity and low ignition loss that can make higher magnesium extraction rate and silicon utilization rate to save running cost. The rotary kiln is the most suitable equipment for produce magnesium. The new type energy-saving rotary kiln designed by ZK Corp. has own patent and formed dolomite calcination standard for magnesium industry in China.

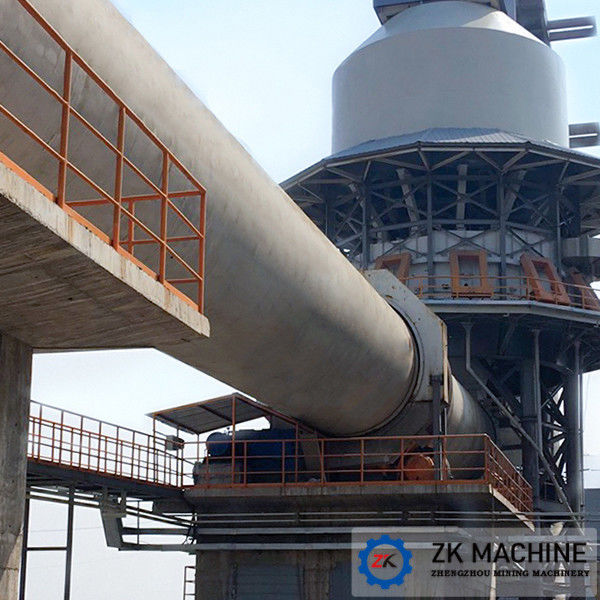

High Quality Calcination Rotary Kiln For Lime Dolomite Clinker ISO CE Certificated 0


Dolomite Clinker​ Calcination Rotay Kiln Structure:
Dolomite rotary kiln is mainly compose of driving device, supporting roller, catching roller, cylinder, kiln inlet, kiln outlet and sealing device.
1. 2-3 supporting points can guarantee the contacting surface between supporting roller and tyre is paralleled with axis line of cylinder during installation.
2. Supporting device is antifriction bearing (occasionally uses slide bearing). This design has simplified the supporting device of supporting roller, and reduced the useless power loss during operation. It has the features like easy operation and maintenance.



High Quality Calcination Rotary Kiln For Lime Dolomite Clinker ISO CE Certificated 1



3. Low speed unloading rotation device is designed for easy installation and commissioning. It also can guarantee unloading rotation operation during maintenance of main driving system or other emergency situation. This design can prevent cylinder from bending and deforming during the temperature is cooling down.
4. Mechanical or hydraulic catching roller is optional according to different type of rotary kiln. Both them have high accuracy and reliability, and also make sure evenly attrition of outer circle of supporting roller and tyre at the direction of complete width.
5. Radial direction contacting type sealing device is adopted at kiln inlet and outlet. They are perfect suitable for dimension tolerance of cylinder and skewing movement of cylinder. This sealing device’s feature is good performance, longer working life and easy for replacement.


Our Advantages of Rotary Kiln For Cement :
1. According to the character of dolomite and its calcination requirement, the structure of kiln inlet and outlet sections has been optimized. It can resolve the problem of material returning back to kiln inlet and the leakage of dust.
2. Inner of the kiln keeps micro negative pressure, dust pollution is lower.
3. Rotary kiln is even calcination, large capacity and easy to operation and maintenance.



High Quality Calcination Rotary Kiln For Lime Dolomite Clinker ISO CE Certificated 2


Lime Rotary Kiln​s Specifications :



Size Capacity(t/d)

No. of

Supporter

Reducer Motor

Power

(kW)

Ø2.2×38m 120 3sets ZS125-5 YVF2-225M-4 45
Ø2.5×40m 150 3sets ZS145-5 YVF2-250M-4 55
Ø2.8×43m 200 3sets ZS165-6 YVF2-280S-4 75
Ø3.0×50m 230 3sets ZS165-3 YVF2-280M-4 90
Ø3.2×50m 250 3sets ZL130-16 YVF2-315L2-6 132
Ø3.6×55m 400 3sets ZSY560-63 YVF2-355M1-6 160
Ø3.8×58m 500 3sets ZSY560-63 YVF2-355M2-6 185
Ø4.0×60m 600 3sets ZSY630-35.5 YVF2-355M4-6 200
Ø4.3×64m 800 3sets ZSY630-35.5 YVF2-355L3-6 250
