High Capacity Ceramic Rotary Kiln Plant 48-1000 T/D Convenient Maintenance

High Capacity Ceramic Rotary Kiln Plant 48-1000 T/D Convenient Maintenance

  • High Light

    vertical shaft kiln

    ,

    rotary kiln incinerator

  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    48-1000(t/d)
  • Material
    Lead And Zinc Mineral Raw Material
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Voltage
    220V/380V/440
  • Product Name
    Rotary Lime Kiln, Leca Rotary Kiln
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    Various models
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

High Capacity Ceramic Rotary Kiln Plant 48-1000 T/D Convenient Maintenance

High capacity and Low Price Building Ceramic Rotary Kiln From China





Rotary Kiln Introduction:

As a new type of environmentally friendly materials, ceramic is widely used in petroleum, construction, chemicals, sewage treatment and other industries.



Rotary kiln is the key equipment of ceramic calcining system. Its performance will directly affect the quality and cost. For the different characteristics and requirements of the traditional calcining ceramic materials, we developed the new series rotary kiln. It has the characteristics of even calcining, large capacity, high operation, energy saving, easy operation and maintenance as well as long machine life, and can reduce the equipment operating costs significantly.


Ceramic rotary Kiln consists of gearing, supporting rollers, catching wheels, cylinder, kiln head, kiln tail sealing and other components.

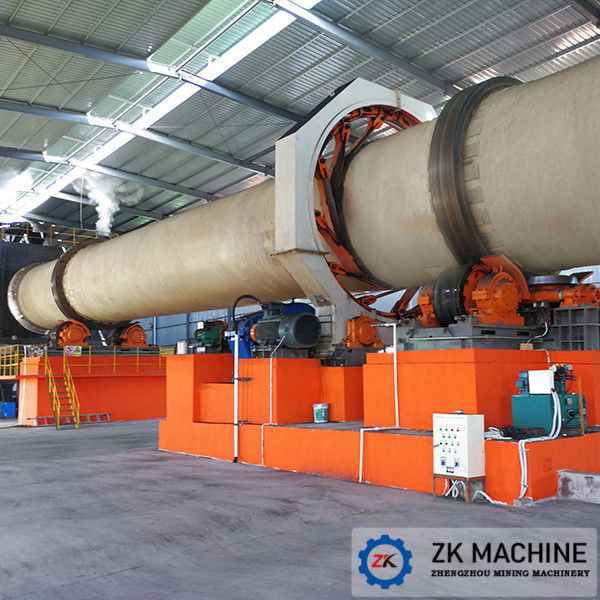

High Capacity Ceramic Rotary Kiln Plant 48-1000 T/D Convenient Maintenance 0



The Main Structural Features Are:
1. There are 2 to 3 fulcrums on kiln. It is easy to ensure the contact surface of rollers and kiln tires parallel to the cylinder axis during installing;



2. There are specific gap between the tire and cylinder. It strengthens the cylinder by confining tires after thermal expansion;


3. The supports use rolling bearing which simplified bearing structure. It reduces energy losses during Kiln operation and makes it easier to maintain and repair;


4. In order to convenient installation and commissioning, there is a kiln slow rotating devices to maintain kiln nonconventional running operation while main transmission system is under overhaul or other abnormal conditions which can occur cylinder bending and deformation during the cooling process.


5. The kiln uses mechanical or hydraulic catching wheels. They are high accuracy and reliability. The ridding rollers and tires are evenly wearing on the entire width direction and are handy adjustment.;


6. The kiln head and tail uses elastic flake radial contact sealing. It can fit the cylinder shape inaccurate and kiln deflection & axial movement. It has better sealing performance and reliability, longer service life and convenient replacement.


High Capacity Ceramic Rotary Kiln Plant 48-1000 T/D Convenient Maintenance 1



Advantages of Ceramic Rotary Kiln:
1. For the characteristics and requirements of ceramic calcining process, we make optimize design on kiln head and kiln tail. It solved the problems of the discharge reverting and dust leakage at kiln tail to have smoothly conveying.
2. It is micro-negative pressure operation in the cylinder with low dust pollution;
3. It is even calcination, large capacity and easy to operation and maintenance.



Rotary Kiln​ Specifications:



Model

Capacity

(t/h)

Rotation Speed

(rpm)

Support Quantity Gear Box Motor

Power

(kw)

Model
Ø1.6×32m 0.8-1.5 0.58-2.85 3 Groups ZQ75-50 YCTZ50-4A 18.5
Ø1.9×39m 1.6-4 0.53-1.59 3 Groups ZQ125-7 YCT315-4A 37
Ø2.2×45m 2.5-8 0.214-1.64 3 Groups

Main ZS125-5

Auxiliary ZQ40-40

Main YCT315-4B

AuxiliaryY112M-4

45

4

Ø2.5×50m 7.5-15 0.62-1.5 3 Groups

Main ZS165-5

Auxiliary ZS50-1

Main YCT355-4A

Auxiliary Y160M-6

55

7.5

Ø2.8×55m 8.5-17 0.62-1.5 3 Groups

Main ZS165-6

Auxiliary ZS50-1

Main YCT355-4B

Auxiliary Y160L-6

75

11

Ø3×60m 17-20 0.5-1.5 4 Groups

Main ZS165-3

Auxiliary ZS50-1

Main ZSN-280-11B

Auxiliary Y160L-6

125

11

Ø3.2×50m 20-50 0.788-3.938 3 Groups

Main NZS995-28VBR

Auxiliary ZL50-9-2

Main ZSN4-280-21B

Auxiliary Y180L-6

160

15

Ø3.6×55m 30-92 0.39-3.9 3 Groups

Main ZSY500-40

Auxiliary ZSY180-31.5

Main ZSN-315-072

Auxiliary Y180L-4

250

22

Ø4.0×60m 32-105 0.39-3.9 3 Groups

Main ZSY630-35.5

Auxiliary ZL65-16

Main ZSN4-355-092

Auxiliary Y200L-4

315

30
