Application of calcium Carbonate productione grinding machine, calcium carbonate production line;
HGM Series calcium carbonate powder grinding machine is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.
Work Principle of calcium Carbonate productione grinding machine, calcium carbonate production line; ;

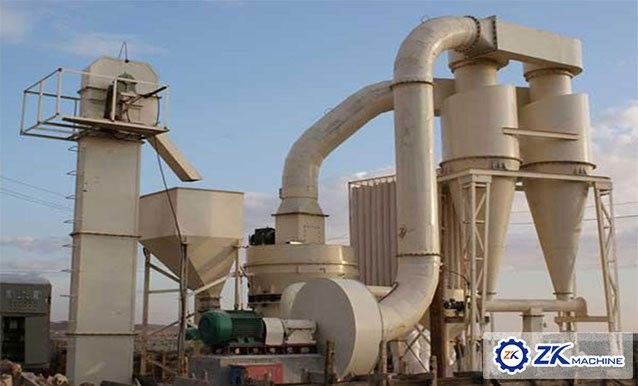

HGM series calcium carbonate grinding machine mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe.
Features of calcium Carbonate productione grinding mill, calcium carbonate production line;
1. High Efficiency
Under the same finished final size and the same motor power, the capacity of calcium carbonate production line is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2. Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.
3. High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4. High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5. Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
6. Advanced intelligent speed control device
7. Convenient adjusting, more uniform particle size.
1. What advantages does your calcium carbonate production line have?
-The main advantage of our calcium carbonate production line over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.
2. Can you guarantee the quality of your calcium carbonate production line?
---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3.How many years have you been manufacturing the machine?
---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality
Technical Data of Calcium Carbonate Powder Making Machine
|
Model
|
HGM80
|
HGM90
|
HGM100
|
HGM125
|
HGM168L
|
|
Ring Diameter(mm)
|
800
|
900
|
1000
|
1250
|
1680
|
|
Ring Number (PCS)
|
3
|
3-4
|
4
|
4
|
4
|
|
Roller Number(PCS)
|
18-21
|
24-29
|
28-36
|
30-44
|
30-40
|
|
Main Shaft Speed (r. p. min)
|
230-240
|
200-220
|
180-200
|
135-155
|
120-130
|
|
Input Size (mm)
|
≤10
|
≤10
|
≤15
|
≤15
|
≤20
|
|
Finished Size (um/mesh)
|
74-5
(200-2500)
|
74-5
(200-2500)
|
74-5
(200-2500)
|
100-6
(150-2000)
|
100-9
(150-1500)
|
|
Capacity (t/h)
|
0.4-4.5
|
0.6-6.5
|
1-9
|
2-16
|
3.8-30
|
|
Outlet Size L*W*H (m)
|
13.9*4*6.2
|
14.7*4.8*7.2
|
18*4.6*8.6
|
14*9*10.25
|
26.3*7.5*11.9
|
| Type |
Roller |
Max. feeding size(mm) |
Fineness(mm) |
Output(t/h) |
Power(kw) |
Size(mm) |
| No. |
Dimension(mm) |
Height(mm) |
| YGM7815 |
3 |
260 |
150 |
15 |
0.613-0.033 |
1-3 |
18.5 |
4300*3500*5100 |
| YGM8314 |
3 |
270 |
140 |
20 |
0.613-0.033 |
1.2-4.6 |
22 |
5300*4100*5200 |
| YGM9517 |
4 |
310 |
170 |
25 |
0.613-0.033 |
2.1-5.6 |
37 |
7100*5900*7900 |
| YGM4121 |
5 |
410 |
210 |
30 |
0.613-0.033 |
2.8-10.5 |
75 |
9200*7250*9700 |
| MTM1600 |
6 |
440 |
270 |
35 |
0.613-0.033 |
5-20 |
132 |
12550*5700*8350 |
| Type |
PC400x300 |
PC600x400 |
PC800x600 |
| Rotor Diameter /mm |
400 |
600 |
800 |
| Rotor Width/ mm |
300 |
400 |
600 |
| Rotor Speed/ r/min |
1100 |
1000 |
900 |
| Max Feeding Size/mm |
<100 |
<220 |
<350 |
| Finished particle size /mm |
0-10 |
0-20 |
0-22 |
| Capacity / t/h |
3-8 |
8-15 |
15-45 |
| Power /kw |
11 |
18.5-22 |
45 |
| Hammer Number /pieces |
12-16 |
12-20 |
20-28 |
| Dimension L*W*H/mm |
855*795*860 |
1150*1095*1230 |
2360*1490*1415
|
