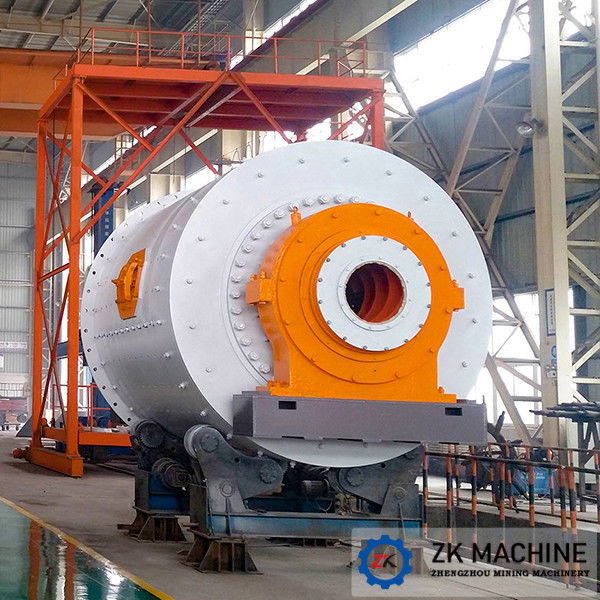

Mining Gold Ore Ball Mill Grinder Energy Saving High Grinding Efficiency

Mining Gold Ore Ball Mill Grinder Energy Saving High Grinding Efficiency

  • High Light

    ball mill machine

    ,

    ball mill equipment

  • Product Name
    Energy Saving Ball Mill
  • Condition
    New
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty
    12 Months
  • Capacity
    1.8-21t/h
  • Material
    Feldspar, Quartz, Clay, Silica And Other Hard Brittle Materials
  • Motor Type
    AC Motor
  • Spare Parts
    Supply All Using Life
  • Models
    MQZ1224-MQZ3660
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    MQZ1224-MQZ3660
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Mining Gold Ore Ball Mill Grinder Energy Saving High Grinding Efficiency

Energy Saving Ball Mill Machine / Mining Ball Mill Manufacturers



Introduction:







Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. Ball mill is widely used in building material, chemical industry, etc. Ball mill have two ways of grinding: The dry process and the wet process. Ball mill can be divided into tabular type grind machine and flowing type grind machine according to different forms of ball mill's discharging material.



Mining Gold Ore Ball Mill Grinder Energy Saving High Grinding Efficiency 0


Features of Dolomite Ball Mill:
Ball mill has a series of merits, such as comparatively simple structure, no grid, high grinding fineness, comparatively less ball loading quantity and so on, widely used into the second stage fine grinding or other occasions requiring finer products.



The Working Principle of the Overflow Ball Mill:
When the ball mill turning, there are centrifugal force and force of friction between grinding medium and the plate in the rotary body wall. And the grinding medium will rotate with rotary body to a certain height. Then it will fall freely under gravity, whereabouts of grinding medium, like a projectile impact the material at the bottom to smaller size. In addition, grinding medium also generates sliding and rolling in the rotary process. Thus there are schleif wirkung among grinding medium, plate and material. So we can get fine powder in the process.



Mining Gold Ore Ball Mill Grinder Energy Saving High Grinding Efficiency 1



Technical Parameters:



Model

Drum Size

(m)

Speed

(r/min)

Ball Weigh(t)

Feed Size

(mm)

Output Size

(mm)

Capacity

(t/h)

Power

(kW)

MQZ1224 1.2X2.4 31 4.8 0-20 0.07-0.6 0.4-6.8 37
MQZ1245 1.2X4.5 31 5.2 0-20 0.07-0.6 1.6-12 45
MQZ1530 1.5X3.0 27.5 8.1 0-25 0.07-0.4 2.9-16.5 65
MQZ1557 1.5X5.7 29.2 15 0-25 0.07-0.4 4-25 95
MQZ1645 1.6X4.5 27.5 14 0-25 0.07-0.4 4-24 95
MQZ1836 1.8X3.6 23.9 11 0-25 0.07-0.4 8-40 132
MQZ1864 1.6X6.4 23.9 18.5 0-25 0.07-0.4 8-60 155
MQZ2130 2.1X3.0 23.8 19.8 0-25 0.07-0.4 6.5-36 155
MQZ2136 2.1X3.6 23.8 27 0-25 0.07-0.4 8-61 155
MQZ2265 2.2X6.5 21.6 28 0-25 0.07-0.4 8-35 210
MQZ2430 2.4X3.0 22 22.5 0-25 0.07-0.4 7-92 210
MQZ2436 2.4X3.6 22 28 0-25 0.07-0.4 7-95 210
MQZ2465 2.4X6.5 22 36 0-25 0.07-0.4 7-110 260
MQZ2736 2.7X3.6 21.9 39 0-25 0.07-0.4 13-140 310
MQZ2745 2.7X4.5 21.9 43 0-25 0.07-0.4 13-150 320
MQZ2836 2.8X3.6 20 42 0-25 0.07-0.4 15-140 310
MQZ3060 3.0X6.0 19 70 0-25 0.07-0.4 100-145 630
MQZ3245 3.2X4.5 18.6 65 0-25 0.07-0.4 100-145 630
MQZ3260 3.2X6.0 18.6 86 0-25 0.07-0.4 120-150 800
MQZ3645 3.6X4.5 17.8 90 0-25 0.07-0.4 120-220 1000
MQZ3660 3.6X6.0 17.8 120 0-25 0.07-0.4 50-230 1250

Mining Gold Ore Ball Mill Grinder Energy Saving High Grinding Efficiency 2


Notes on Choosing the Type of Ball Mill:
1. Know the hardness of your own ore.
2. Choose the energy-saving ball mill to the great extent.
3. Know the ore fineness required.
4. Choose the right diameter and length of the ball mill according to the output requirement.
5. Buy it from the professional ball mill manufacturer relative to your ore which would be best.
6. The manufacturer should hold the market share in the place where your enterprise located.
7. Choose the new-type transformation ball mill with the rotate speed different from the module.
8. Choose the aperture of the close board and the sub-freignt space according to the ore fineness of your demand.
9. Choose the lining board material and set the thickness of the steel plate on the mill body by the price of the ball mill.
10. Select the modules of the big gear and pinion, and the manufacturers of the electric motor and the speed reducer.
