Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
YMQG900x1800-YMQG1830x7000

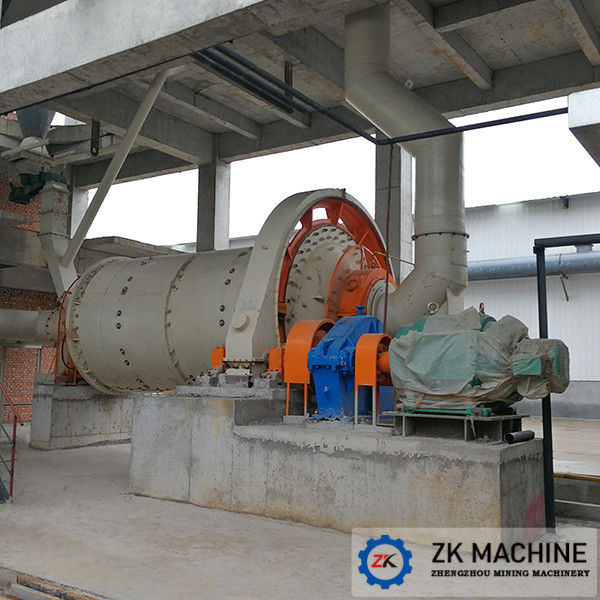

High Efficient Horizontal Cylindrical Ceramic Ball Mill / Ceramic Ball Mill with New Price
Introduction:
Ceramic ball mill is also called (Intermittent ball mill/Batch ball mill). Ceramic ball mill can be used to grind feldspar, quartz, clay, silica and other hard brittle materials. It is widely applied in industrial production of high fine grinding materials. Ceramic ball mill grinding has dry and wet ways, of which the dry grinding can produce ultra-fine powder with the fineness of 1000-16000 mesh.
Structure of Feldspar Ball Mill Machine:
Ceramic ball mill is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers.
Our Advantages of Clay Ball Mill Machine
1. After finished material is discharged, another raw material can be put in for grinding, can’t continuous feeding and discharge material.
2. Different liners and grinding media can be used to meet different requirements.
3. The fineness of grinding material depending on milling time.
4. It can be used for wet or dry grinding, finished slurry can pass 1000mesh screen.
Silica Ball Mill Machine Specifications:
| Model | Barrel | Speed | Capacity | Feed size | Output size | Output | Motor | weight | ||
| Dia. | Length | Type | Power | |||||||
| YMQG900x1800 | 900 | 1800 | 38 | 1.8 | 0-25 | 0.075-0.6 | 0.44-2.4 | Y180L-6 | 15 | 4.2 |
| YMQG900x3000 | 900 | 3000 | 38 | 2.5 | 0-25 | 0.075-0.6 | 0.7-2.9 | Y180L-6 | 18.5 | 5.4 |
| YMQG1200x2400 | 1200 | 2400 | 37 | 4.8 | 0-25 | 0.075-0.6 | 0.4-5.8 | Y225M-6 | 30 | 8.2 |
| YMQG1200x4500 | 1200 | 4500 | 37 | 5.2 | 0-25 | 0.075-0.6 | 1.4-5 | Y280M-6 | 55 | 11 |
| YMQG1500x3000 | 1500 | 3000 | 29 | 10 | 0-25 | 0.075-0.4 | 2.8-9 | Y315S-6 | 75 | 16.3 |
| YMQG1500x5700 | 1500 | 5700 | 29 | 12 | 0-25 | 0.075-0.4 | 3.1-7 | Y315M-6 | 90 | 20.7 |
| YMQG1830x6400 | 1830 | 6400 | 23.9 | 18.5 | 0-25 | 0.075-0.4 | 6-8.5 | JR138-8 | 210 | 35.1 |
| YMQG1830x7000 | 1830 | 7000 | 23.9 | 21 | 0-25 | 0.075-0.4 | 6-7 | JR138-8 | 245 | 38 |
