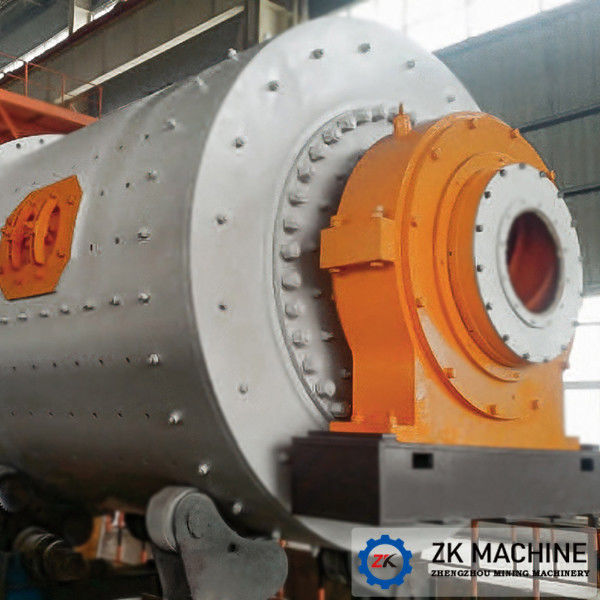

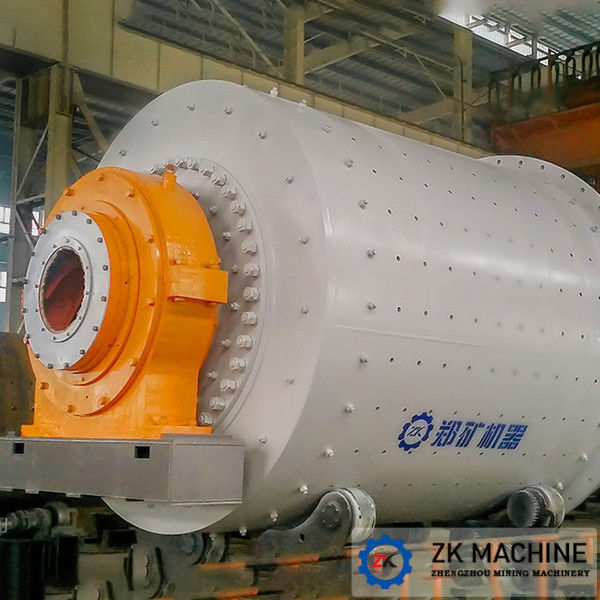

Energy Saving Ball Mill Grinder MQG Wet Type Ball Grinding Mill Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | ZK CORP |
| Certification: | ISO,CE |
| Model Number: | MQG Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | FOB Price: US $ 1000000 / Piece |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Per Month |
|
Detail Information |
|||
| Name: | Energy Saving Ball Mill Grinder MQG Wet Type Ball Grinding Mill Machine | Model: | Φ750×750-Φ1830×6400 |
|---|---|---|---|
| Material Feature: | Fire Resistant | Feed Size （mm）: | ≦20/25 |
| Capacity: | 0.18-15(t/h) | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Grinding Type: | Dry/Wet | Voltage: | 220V/380V/440 |
| Motor Type: | AC Motor | ||
| High Light: | ball mill equipment,ball mill mining |
||
Product Description
Heavy Duty 300 T/H Alluvial Gold Mining Machine, Mobile Gold Mining Equipment
Introduction:
Ore ball mill is used to separate and screening different ore minerals, separate ore tailing. It also be used for ore grinding, non-ferrous metal beneficiation, new-type building material producing. According to the discharge method, the ball mill divided to dry-type mill and wet-type mill.
Metallurgical and beneficiation ball mills are the main equipment for beneficiation in mines, which are essential to improve the quality of the minerals.
It can grind mineral materials, non-ferrous metal ore beneficiation, new building materials, and the selected mineral materials are of uniform fineness and good quality.
The company's metallurgical beneficiation ball mill has six specifications from Φ750×750 (mm) to Φ1830×6400 (mm), which can meet the grinding and beneficiation of 0.18-15 t/h minerals.
Product Advantages:
1. High grinding efficiency, low consumption
2. Product fineness is adjustable and uniform.
3. Low energy consumption, low wear, low operating costs.
4. Small vibration, low noise, environmental friendly
5. Liner is made of high-quality wear resistant material with high strength, wear resistance and long working life.
Technical Data:
| model | cylinder rev(r/min) |
grind media weight (t) |
feeding size(mm) | output size(mm) |
output (t/h) |
motor | |
| type | power | ||||||
| MQG900X1800 | 38 | 1.8 | ≦25 | 0.074-.06 | 0.8-1 | Y255M-8 | 22 |
| MQG900X3000 | 37.4 | 2.7 | ≦25 | 0.074-0.3 | 0.8 | Y225M-6 | 30 |
| MQG1200x2400 | 32 | 4.8 | ≦25 | 0.074-.06 | 1.5-2 | Y280M-8 | 45 |
| MQG1200X4500 | 30 | 5.2 | ≦25 | 0.074-.06 | 1.5 | Y280M-6 | 55 |
| MQG1500x4500 | 28.8 | 10 | ≦25 | 0.074-0.4 | 3-4 | JR126-8 | 110 |
| MQG1500x5700 | 28.8 | 12 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1500x6400 | 28.8 | 13 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1830x5400 | 24.5 | 15 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG18306400 | 24.5 | 19 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG1830x7000 | 24.5 | 20 | ≦25 | 0.074-0.4 | 6-8 | JR138-8 | 245 |
| MQG2200x7000 | 21.6 | 30 | ≦25 | 0.074-0.8 | 8-10 | JR158-8 | 380 |
| MQG2200x9000 | 21.4 | 34 | ≦25 | 0.074-0.8 | 8-10 | JR1510-8 | 475 |
| MQG2400x7000 | 20.4 | 36 | ≦25 | 0.074-0.8 | 10-14 | JR1510-8 | 475 |
| MQG2400x8000 | 20.4 | 42 | ≦25 | 0.074-0.8 | 10-14 | YR630-8 | 560 |
| MQG2600x8000 | 19.6 | 52 | ≦25 | 0.074-0.8 | 16-20 | JR1512-8 | 630 |
| MQG3000x9000 | 18.3 | 78 | ≦25 | 0.074-0.8 | 20-25 | YR1000-8/1180 | 1000 |
