Continuous Ball Mill Crusher , Batch Ball Mill Large Handling Capacity

Continuous Ball Mill Crusher , Batch Ball Mill Large Handling Capacity

  • High Light

    Continuous Ball Mill Crusher

    ,

    25mm Feeding Batch Ball Mill

    ,

    Hollow Shaft Batch Ball Mill

  • Ball Mill Type
    Continuous Ball Mill, Batch Ball Mill
  • Feeding Size(mm)
    ≦25
  • Output Size(mm)
    0.074-0.8
  • Capacity
    0.8-25t/h
  • Material
    Mining, Cement, Ceramic, Building Material
  • Supply Ability
    30 Per Month
  • Price
    Negotiable
  • Voltage
    220V/380V/440
  • Place of Origin
    China
  • Brand Name
    ZK
  • Certification
    CE ISO Certification
  • Model Number
    MQG900X1800,MQG3000x9000
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Export standard container or as customers' requirements
  • Delivery Time
    30 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set / Sets per Month

Continuous Ball Mill Crusher , Batch Ball Mill Large Handling Capacity

Continouos Ball Mill from China manufacturer / Batch Ball Mill for Sale



Introduction:

In the continuous type Ball Mill, the material is being fed from the one end through its hollow shaft, while the crushed material comes out from the hollow shaft, at the other end. Usually continuous Mills are used when the production rate is required to be high.



Specially designed for :Cement, Iron Ore, Copper Ore, Alumina, Cement, Calcium Carbonate, Bauxite, Calcium Carbide, Calcium Oxide, Ceramic, Refractory, Slurry, Coconut shell, Carbon industries etc.

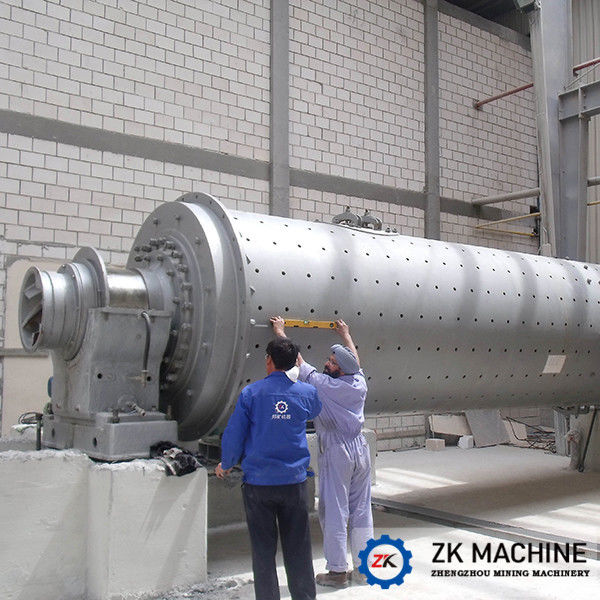

Continuous Ball Mill Crusher , Batch Ball Mill Large Handling Capacity 0



Ball Mill Features:
1. Large application range, simple structure and convenient maintenance;
2. Large capacity and continuous work are very obvious;
3. Barrel lining and grinding media can apply various abrasive materials;
4. Installation and adjustment are very convenient and easy to be operated.



Our Advantage :
1. Energy saving and Long working life.
2. Big crushing ratio and High ore particle fineness.
3. Simple structure and Convenient maintenance: Ball Mill changes the complicated grinding mill structure.
4. Good corrosion resistance and Runs steadily and efficiently: This ball mill has stable operation and reliable performance.
5. Easy installation Adjustment, and operation and High technology.

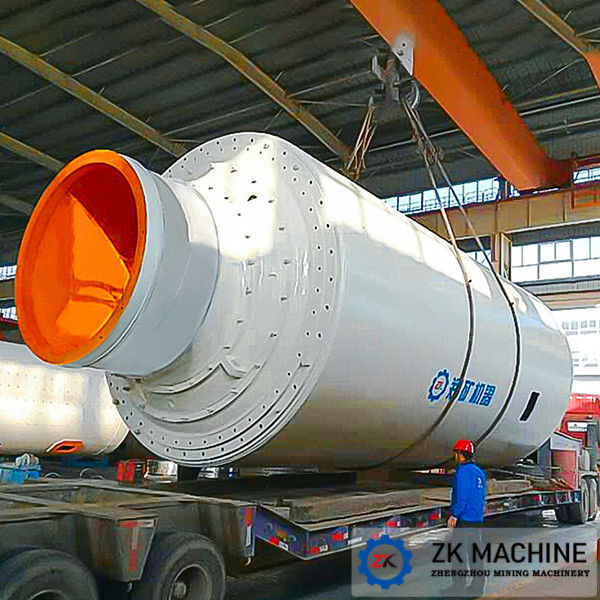

Continuous Ball Mill Crusher , Batch Ball Mill Large Handling Capacity 1



Technical Specifications:



model cylinder rev(r/min) grind media weight (t) feeding size(mm) output size(mm)

output

(t/h)

motor
type power
MQG900X1800 38 1.8 ≦25 0.074-.06 0.8-1 Y255M-8 22
MQG900X3000 37.4 2.7 ≦25 0.074-0.3 0.8 Y225M-6 30
MQG1200x2400 32 4.8 ≦25 0.074-.06 1.5-2 Y280M-8 45
MQG1200X4500 30 5.2 ≦25 0.074-.06 1.5 Y280M-6 55
MQG1500x4500 28.8 10 ≦25 0.074-0.4 3-4 JR126-8 110
MQG1500x5700 28.8 12 ≦25 0.074-0.4 3-5 JR127-8 130
MQG1500x6400 28.8 13 ≦25 0.074-0.4 3-5 JR127-8 130
MQG1830x5400 24.5 15 ≦25 0.074-0.4 5-7 JR137-8 210
MQG18306400 24.5 19 ≦25 0.074-0.4 5-7 JR137-8 210
MQG1830x7000 24.5 20 ≦25 0.074-0.4 6-8 JR138-8 245
MQG2200x7000 21.6 30 ≦25 0.074-0.8 8-10 JR158-8 380
MQG2200x9000 21.4 34 ≦25 0.074-0.8 8-10 JR1510-8 475
MQG2400x7000 20.4 36 ≦25 0.074-0.8 10-14 JR1510-8 475
MQG2400x8000 20.4 42 ≦25 0.074-0.8 10-14 YR630-8 560
MQG2600x8000 19.6 52 ≦25 0.074-0.8 16-20 JR1512-8 630
MQG3000x9000 18.3 78 ≦25 0.074-0.8 20-25 YR1000-8/1180 1000

Continuous Ball Mill Crusher , Batch Ball Mill Large Handling Capacity 2
