Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
High Profit 50,000-600,000(m³/a) Construction Ceramsite LECA Production Line
LECA Production Line Introduction: Henan Zhengzhou Mining Machinery Co., Ltd. can provide a full set of ceramsite production line equipment, process and technical support; the raw materials mainly include municipal sludge, papermaking sludge, printing and dyeing sludge, electroplating sludge, pickling sludge, leather sludge, Oil-based mud, drilling cuttings, shale, fly ash, general clay, construction spoil, repair soil, contaminated soil, coal gangue, etc.; the heat source can be coal, natural gas or biomass fuel, etc. Welcome to inquire about technology and investment!
Production Capacity: 50,000-600,000 (m³/a)
Types of Ceramsite:
sludge ceramsite
shale ceramsite
fly ash ceramsite
gangue ceramsite
contaminated soil ceramsite
clay ceramsite
Equipment Configuration: plug-in rotary kiln, single-cylinder cooler, vertical cooler, air cooler, roller crusher, twin-shaft mixer, roller granulator, bag dust collector, fan, rotary screen, belt machine.
Production Process of the Leca Plant:
1. Raw Material Process. The main raw material is clay or slurry.
2. Mixing and Granulating. The material fall into a double roller granulator to become 5-10mm sphere shape material.
3. Preheating and burning. The sphere shaper material enter into the preheating kiln by chute.
4. Cooling. Cooler shall adopt the single drum cooler, vertical cooler, grate cooler and etc.
5. Fuel Combustion.Coal, natural gas and biomass fuel are good choices as fuel.
6. Kiln Inlet Dust Collect. Gas processed by air cooler machine and then sent to the bag filter for dedusting.
7. Final Product Screening and Packing. The Light Expanded Clay Aggregate will be screened into the size of 5mm, 15mm and 25mm.
Our Advantages:
Since 2005, we, ZK Corp had been involved in the ceramsite industry and commit to the research and development of the equipment for industrial solid waste disposal and for energy saving research, so that solid waste can be treated with harmlessness, reduction and resource reusing. Our LECA equipment have been widely used in Chinese LECA manufactures and won the good reputation from customers. We have begun the exported business since 2010 and create the good economic benefit. We adopt the energy saved technology and get the good efficiency.
1. Energy-saving environment friendly:
Advanced production process and large capacity for single production line with low heat loss. The advanced bag type dust collector, which is equipped in LECA equipment, keeps exhaust gas below 30mg/Nm3. The energ ysaving vertical preheater is equipped in LECA production line with advanced process, and reasonable design and high level technology.
2. High degree of automation: LECA production line is fitted with temperature and pressure monitoring instrumentation, operating parameters of the computer display, and is capable of using advanced computer control to achieve automatic operation of the entire system.
3. Lost investment: Based on the features of Light Expanded Clay Aggregate (LECA), double-cylinder insert type rotary kiln controls the preheating and calcination process.
Parameter
| No | Indicator | Unit | Value | ||||
| 1 | Capacity | m3/a | 15,000 | 25,000 | 35,000 | 50,000 | 100,000 |
| 2 | Product | ||||||
| ① | LECA (Light Expanded Clay Aggregate) | m3/a | 15,000 | 25,000 | 35,000 | 50,000 | 100,000 |
| 3 | Main Fuel and raw material consumption | ||||||
| ① | Clay | t/a | 8,800 | 14,700 | 20,500 | 29,400 | 58,800 |
| ② | Shale | t/a | 8,300 | 13,900 | 19,400 | 27,800 | 55,600 |
| ③ | Coal | t/a | 1,360 | 2,270 | 3,180 | 4,540 | 9,080 |
| 4 | Power Consumption | ||||||
| ① | Fresh Water | t/a | 1,000 | 1,500 | 2,500 | 3,000 | 6,000 |
| ② | Power | kWh/a | 187,500 | 312,500 | 875,000 | 1,250,000 | 2,500,000 |
| 5 | Employee Qty Needed | a | 25 | 25 | 23 | 23 | 22 |

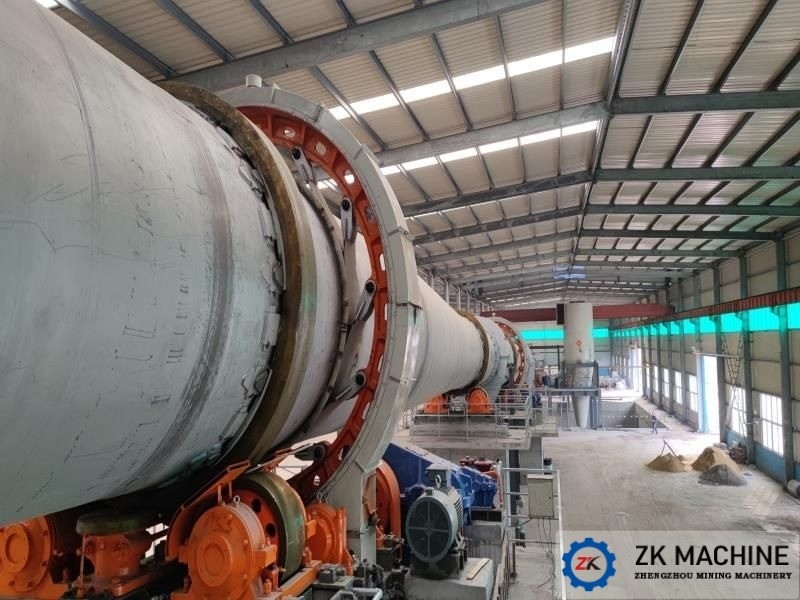

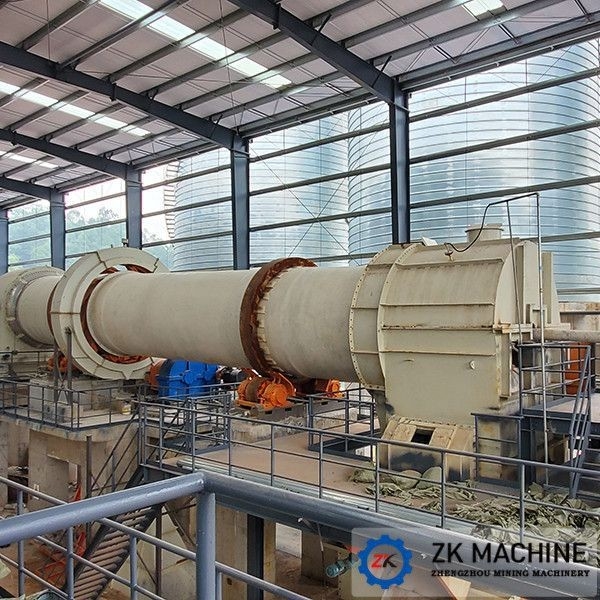

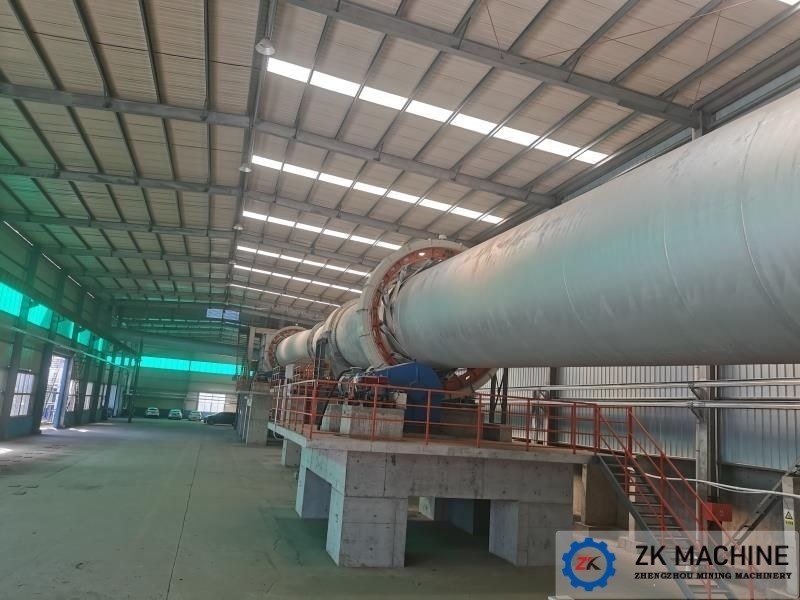

Main Equipment - LECA Rotary Kiln
LECA (Light Expanded Clay Aggregate) as a new environmental protection material is widely used in the construction field. It can be made of wallboard, brick and other new wallboard material. It also can be used for insulation, floor, lightweight concrete, water treatment and etc. Rotary kiln is the key equipment in the LECA production. The performance will affect the final LECA quality and production cost directly.
LECA Rotary kiln Specifications:
| Model | Capacity (t/h) |
Rotation Speed (rpm) |
Support Quantity | Gear Box | Motor | Power (kw) |
| Model | ||||||
| Ø1.6×32m | 0.8-1.5 | 0.58-2.85 | 3 Groups | ZQ75-50 | YCTZ50-4A | 18.5 |
| Ø1.9×39m | 1.6-4 | 0.53-1.59 | 3 Groups | ZQ125-7 | YCT315-4A | 37 |
| Ø2.2×45m | 2.5-8 | 0.214-1.64 | 3 Groups | Main ZS125-5 Auxiliary ZQ40-40 |
Main YCT315-4B AuxiliaryY112M-4 |
45 4 |
| Ø2.5×50m | 7.5-15 | 0.62-1.5 | 3 Groups | Main ZS165-5 Auxiliary ZS50-1 |
Main YCT355-4A Auxiliary Y160M-6 |
55 7.5 |
| Ø2.8×55m | 8.5-17 | 0.62-1.5 | 3 Groups | Main ZS165-6 Auxiliary ZS50-1 |
Main YCT355-4B Auxiliary Y160L-6 |
75 11 |
| Ø3×60m | 17-20 | 0.5-1.5 | 4 Groups | Main ZS165-3 Auxiliary ZS50-1 |
Main ZSN-280-11B Auxiliary Y160L-6 |
125 11 |
| Ø3.2×50m | 20-50 | 0.788-3.938 | 3 Groups | Main NZS995-28VBR Auxiliary ZL50-9-2 |
Main ZSN4-280-21B Auxiliary Y180L-6 |
160 15 |
| Ø3.6×55m | 30-92 | 0.39-3.9 | 3 Groups | Main ZSY500-40 Auxiliary ZSY180-31.5 |
Main ZSN-315-072 Auxiliary Y180L-4 |
250 22 |
| Ø4.0×60m | 32-105 | 0.39-3.9 | 3 Groups | Main ZSY630-35.5 Auxiliary ZL65-16 |
Main ZSN4-355-092 Auxiliary Y200L-4 |
315 30 |
