Energy Saving Pulverized Coal Burner , Cement Kiln Burner High Reliability

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: LY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month
Contact Now

Detail Information

Brand Name: ZK Corp Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Capacity: Rotary Kiln Φ1.9-Φ4 Coal Consumption: 1.2-6.5
Motor Type: AC Motor Spare Parts: Supply All Using Life
Voltage: 220V/380V/440
High Light:

calcination rotary kiln

,

vertical shaft kiln

Product Description

Pulverized Coal Burner Manufacturer / Cement Kiln Burner / Coal Dust Burner for Sale





Pulverized Coal Burner Introduction:
Pulverized coal burner can make pulverized coal fully burn at a short time and produce high temperature vortex. It can be divided into three types according to the usage:
1. pulverized coal burner for rotary kiln;
2. pulverized coal burner for boilers;
3. pulverized coal burner for asphalt mixing plant. It’s specially designed with multistage multi nozzel air guide structure which produces high temperature vortex in a short time. It has several strong points, such as complete combustion, high heat utilization ratio, dust and smoke removal, high efficiency, energy saving, working condition improvement and lowering labor intensity. It’s an ideal product for environmental protection. It’s applied to all dryer boiler, rotary kiln boiler, annealing furnace, metal heating furnace, quenching furnace, precision casting sintering furnace, melting furnace, forging furnace and other heating boilers.

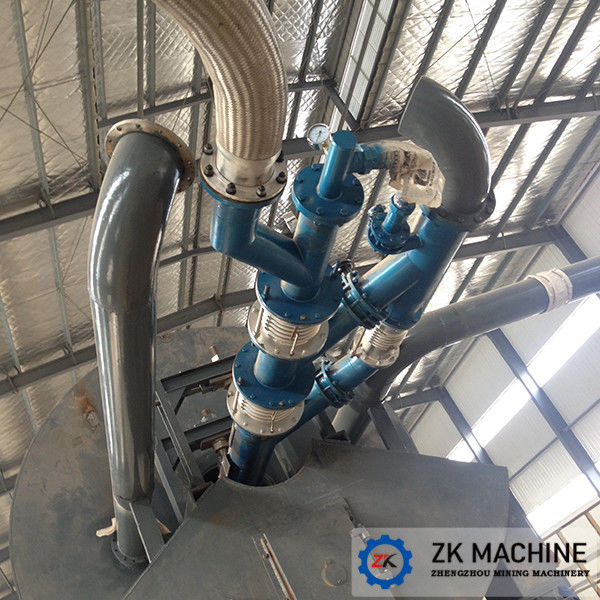

Energy Saving Pulverized Coal Burner , Cement Kiln Burner High Reliability 0


Coal Powder Mini Burners Working Principle:
Qualified coal powder (with fineness of 88-μm and screen residue of less than 10%) enters into the convey pump and then into the burner along the air of the draught fan. The air for coal feeding is provided by Roots fan and is adjusted by the aperture of the valve on the tube according to the air volume. The adjustment can be stopped after the burning is stable. In the rotary kiln, the mixing ratio of coal powder and the air mainly depends on the mixing of coal powder and the secondary air. The stronger of outlet momentum and cyclone intensity of the first air are, the more secondary air can be absorbed. The intensity of the first air is related to the proportion of inner and outer air. Thus, adjusting the proportion of the inner and outer air volume is the key to achieve ideal combustion of the mixing between coal powder and combustion-supporting air. The clean air is the sum of inner, outer and center air (four air channels) and flows into the inner, outer and central air tube by exclusive draught fan adjusting air volume and pressure. To meet the requirements of forging condition, the proportion of the first air volume and inner and outer volume should be adjusted in time while other distributions should be adjusted by butterfly valve. The first air volume is controlled by different aperture of three air channel valves. Pulverized coal burner is installed on the walking trolley which is on the track. It moves back and forth by the adjustment structure. The oil burner is placed in the center tube for primary ignition. It mainly uses high pressure oil and compressed air and the oil will be atomized and be sprayed under the action of compressed air.

Energy Saving Pulverized Coal Burner , Cement Kiln Burner High Reliability 1



Cement Kiln Burner​ Performance Characteristics:
1.Coal powder stays a long time in the high temperature zone. Thus, the discharging is direct without smoke and with high combustion efficiency, in steam smoke;
2.The time of rising temperature is reduced with high heat efficiency and less requirements for coal and wide applicable scope for various coal as well as high economic benefit;
3.Easy for ignition, fast rising temperature and high efficiency;
4.Air volume and coal feed volume can be adjusted according to requirements. The temperature of the furnace and the flame length are also adjustable within a wider range to meet the actual needs;
5.Even temperature field inside the coal powder burner, large heating area, no adhesion of slag onto the surface of components and good quality.

Energy Saving Pulverized Coal Burner , Cement Kiln Burner High Reliability 2

Technical Data:



Type and Spec Coal Consumption(t/h) Fan Installation Kiln Type Overall Size
LY-1 1.2-1.8 Centrifuga Horizontal/Suspended Ф1.9 300x9000
LY-1A 1.3-2.3 Centrifuga Horizontal/Suspended Ф2.2 300x9000
LY-2A 1.8-2.8 Centrifuga Horizontal/Suspended Ф2.5 300x9000
LY-2A 2.2-3 Centrifuga Suspended Ф2.8 300x9000
LY-3 2.5-3.3 Centrifuga/Roots Suspended Ф3 350x10000
LY-3A 3-3.8 Centrifuga/Roots Suspended Ф3.2 350x12000
LY-4 4-4.8 Centrifuga/Roots Suspended Ф3.5 406x12000
LY-4A 5-6.5 Centrifuga/Roots Suspended Ф4 400x12000

For different type of kiln, fuel characteristics and process conditions, the multifuel burner is custom designed and fabricated.
