Place of Origin:
CHINA
Certification:
ISO,CE
Model Number:
Vibrating Feeder Machine
Video

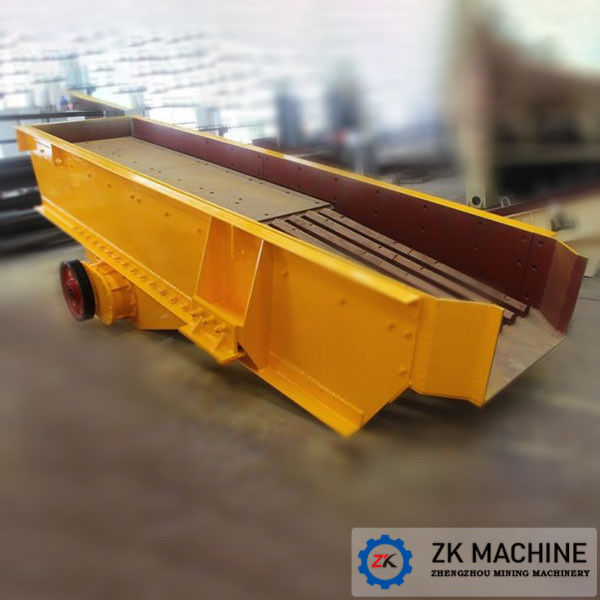

GZT Vibrating Feeder is designed by our company absorbing advanced technology home and abroad, and adopts vibrating motor to produce vibration force. It can send large material into the crushers evenly. At the same time, by using the bar screen deck, materials such as soil which can be crushed easily will be removed and the carase crushing capacity is improved.

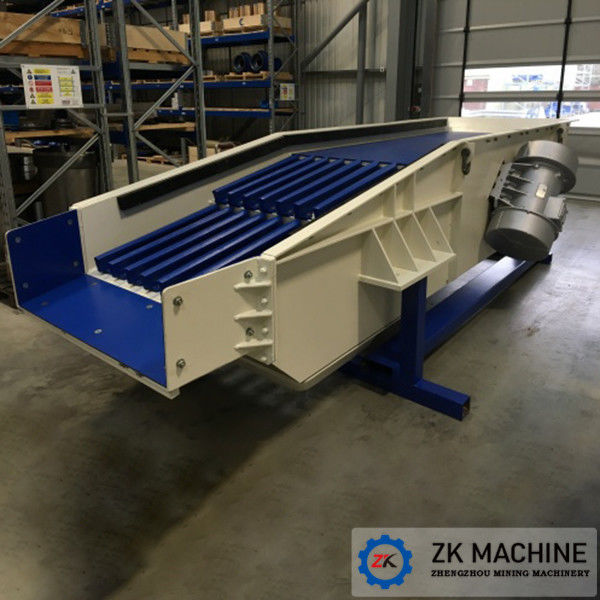

GZT Vibrating Feeder use a pair of motor with complete same parameter as vibrating source. It can continuously and uniformly feed lump, granulate material to receiving equipment. and screen material during feeding process. It has feature such as big vibrating force, high strength, impact resistance, long service.
Application of Vibrating Feeder :
It is widely used for feeding big size material for crushing in mine, cement, lime, ore dressing industries, etc.
Simple structure, reliable operation, easy adjustment and installation, large carrying capacity, high transmission efficiency, eliminating the bottom plate when the pendulum back and forth pendulum phenomenon. Eliminating the existing reciprocating feeder to work in the bottom of the drawbacks of bending deformation.
The advantages of reliable operation, long service life, light weight, small size, convenient maintenance and maintenance.
Vibration Feeder Machine Working Principle:
GZ series Electromagnetic Vibration Feeder is mainly composed with material tank, electromagnetic vibration exciter, damper spring and control box, the features are showing as below:
1. Material Tank
Tank has been welding by wear-resistance steel plate, with high strength and rigidity, mainly used for conveying.
2. Electromagnetic Vibration Exciter
Exciter mainly composed with electromagnet (Iron core and coil), armature and the main vibration spring between each. Exciter is the vibration source, which can adjust the strength of vibration force by control device.
3. Damper Spring
Damper spring is steel make spiral spring, with high reliability and stability.
4. Control Box
Mainly used for adjusting the discretion of the rectifier voltage to realize the control for vibration force.
| Model | Capacity(t/h) | Max Feed Size(mm) | Motor Power(kw) | |
| Level | -10° | |||
| GZ1 | 5 | 7 | 50 | 0.06 |
| GZ2 | 10 | 14 | 50 | 0.15 |
| GZ3 | 25 | 35 | 75 | 0.2 |
| GZ4 | 50 | 70 | 100 | 0.45 |
| GZ5 | 100 | 140 | 150 | 0.65 |
| GZ6 | 150 | 210 | 200 | 1.5 |
| GZ7 | 250 | 350 | 250 | 3 |
| GZ8 | 400 | 560 | 300 | 4 |
| GZ9 | 600 | 840 | 350 | 5.5 |
