Impact Stone Crusher Machine With Special Shape Impact Plate Multipurpose

Product Details:
Place of Origin: China
Brand Name: ZK CORP
Certification: ISO,CE
Model Number: PF Impact Crusher
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 30DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Contact Now

Detail Information

Product Name: 4560 Impact Crusher,impact Crusher Sug 1400 Hd Price,impact Crushers Condition: New
Guarantee: For One Year Motor: 30-400kw
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
Motor Type: AC Motor Voltage: 220V/380V/440V
Spare Parts: Supply All Using Life
High Light:

jaw stone crusher


rock crusher machine

Product Description

Impact Stone Crusher Machine With Special Shape Impact Plate Multipurpose



Impact Crusher Description:

We are a professional crusher manufacturer and the matching equipments, like jaw crusher, impact crusher, hammer crusher, roller crusher, vibrating feeder, vibrating screen, belt conveyors, etc. which are widely used in crushing and reshaping of all kinds of hard stones ,like basalt, granite, cobblestone, limestone, and so on.


Impact crusher is mainly used in secondary crushing, and can crush material of crushing compression strength no more than 320 Mpa. It is suitable to produce high rank highway, hydroelectric and building material.

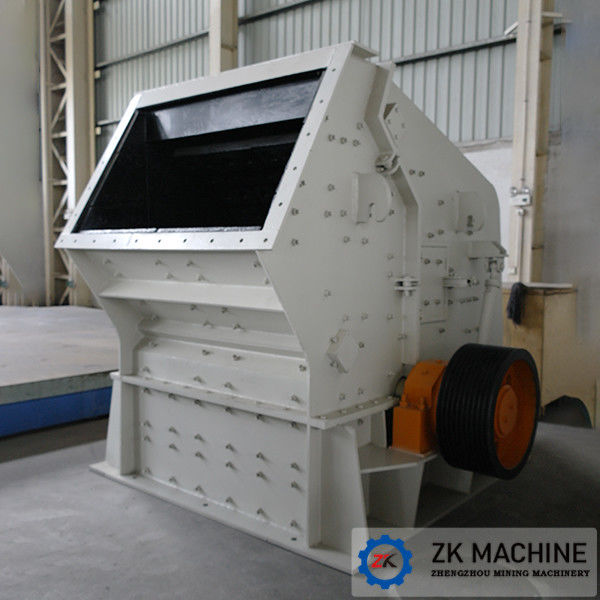

Impact Stone Crusher Machine With Special Shape Impact Plate Multipurpose 0


Features And Benefits Of Impact Crusher With Special Shape Impact Plate:
1. Even crushing function of multi-cavities which is suitable to crush hard material.
2.Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.
3 .Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
4. Hydraulic start-up which is convenient for maintenance and replacement of wear-parts.
5. new anti-abrasive material which prolong service life of impact hammer, impact plate and liner.

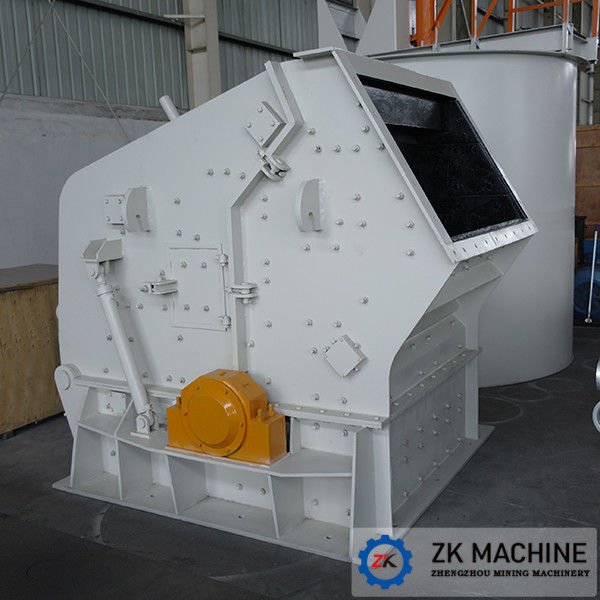

Impact Stone Crusher Machine With Special Shape Impact Plate Multipurpose 1

Impact Crusher With Special Shape Impact Plate Main Technical Parameter:


Model Spec.(mm) Feeding Opening Size(mm)



Capacity(t/h) Motor Power(kw)
PF-0807 Φ850x700 400x730 300 15-30 30-45
PF-1007 Φ1000x700 400x730 300 30-50 37-55
PF-1010 Φ1000x1050 400x1080 350 50-80 55-75
PF-1210 Φ1250x1050 400x1080 350 70-120 110-132
PF-1214 Φ1250x1400 400x1430 350 130-180 132-160
PF-1310 Φ1300x1050 490x1170 400 80-140 110-160
PF-1315 Φ1320x1500 860x1520 500 160-250 180-260
PF-1415 Φ1450x1500 1145x1520 950 220-450 220-315
PF-1520 Φ1520x2000 830x2050 700 300-550 315-440

In order to offer you the most appropriate crusher line, pls send me the details below with your inquiry:

1. The feeding size of raw material;

2. The discharge size of finished products, namely the output size you wanna;

3. The capacity (tons per hour)
