Reasonable Structure Industrial Rotary Dryer , Small Rotary Dryer Low Energy Cost

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: Ø1.0×10m-Ø3.6×36m
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80 Set / Sets per Month
Contact Now

Detail Information

Product Name: Industrial Rotary Dryer / Rotary Dryer Equipment Model: Φ1.0×10 - Φ3.6×36 (m)
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Capacity: 1-40(t/h) Material: Cement,Sand, Slag, Coal, Limestone
Motor Type: AC Motor Spare Parts: Supply All Using Life
Voltage: 220V/380V/440
High Light:

rotary drying equipment

,

rotating drum dryer

Product Description

Small Industrial Rotary Dryer Price / Rotary Dryer Equipment for Sale





Rotary Dryer Introduction:

Rotary drier also named revolving tube dryer, is used to dry slag, clay and other materials in construction, metallurgy, chemical, and cement industries.


The machine is made up of a rotating object, a winnowing board, a wheeling device, an upholding device, and a sealed circle. It has reasonable structure, high quality, and low energy cost. Being of excellent workmanship, it is easy to operate.

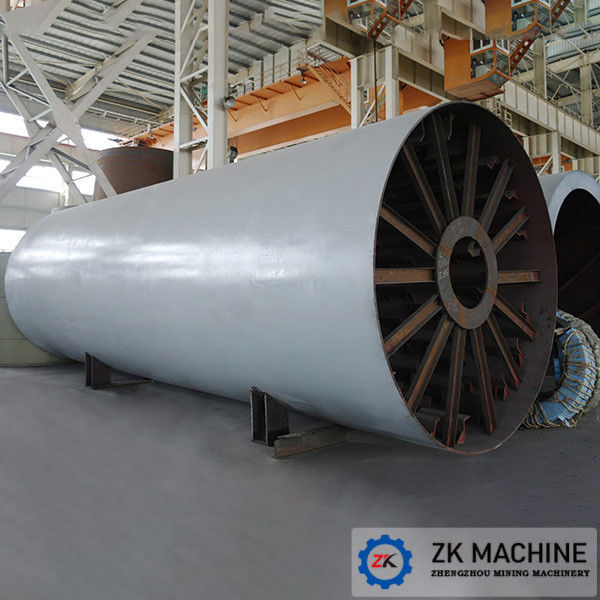

Reasonable Structure Industrial Rotary Dryer , Small Rotary Dryer Low Energy Cost 0



Rotary Dryer/Drier
The Rotary dryer is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of limestone slag, coal powder, slag, clay stone and so on. This dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.



Our Rotary Dryer's Advantages are as Follows:
The process of dryer is very advanced, which takes fast drying with high temperature, high heat transfer coefficient, high heat efficiency and large drying capacity. Air flow drying combines with the high speed agitation drying, which disperses the viscid material sufficiently and improves the contact area of material and thermal medium, thereby improves the process of drying It takes special scrapings device into the dryer so that avoid the material from sticking the wall. Wide application, easy operation, light maintainence work and stable quality.


ZK Rotary Dryer is widely used in the field of building materials metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made into rotary body, lifting blade, driving device, supporting device etc. The dryer has advantages of reason able structure, high efficiency, low energy consumption and convenient for transportation.



Reasonable Structure Industrial Rotary Dryer , Small Rotary Dryer Low Energy Cost 1



Specifications:



MODEL CAPACITY(t/h) SLOPE(%) GEARBOX MOTOR POWER(kW)
Ø1.0×10m 1-2 5 ZQ400 YCT200-4B 7.5
Ø1.2×12m 2-3 5 ZQ500 YCT225-4A 11
Ø1.5×15m 3-5 5 ZQ500 YCT225-4B 15
Ø1.8×18m 4-6 4 ZQ750 YCT250-4B 22
Ø2.0×20m 7-9 3.5 ZQ750 YCT280-4A 30
Ø2.2×22m 8-10 3.5 ZQ850 YCT315-4A 37
Ø2.4×24m 12-15 3.5 ZQ850 YCT315-4B 45
Ø2.8×28m 16-22 3.5 ZS145 YCT355-4A 55
Ø3.0×30m 20-25 3.5 ZS165 YCT355-4B 75
Ø3.2×32m 28-32 3.5 ZL130 YCT355-4C 90
Ø3.6×36m 38-40 3.5 ZL130 YVF2-315L2-6 132
