China Active Lime Production Line manufacturer

Quartz Feldspar Φ1.2×4.5 Φ3.5×10 Vertical Raw Mill

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: ZKRM Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Set / Sets per Month
Contact Now

Detail Information

Product Name: ZKRM Series Vertical Roller Mill Model: ZKRM Series
Feature: Compact Layout Applied Material: Quartz, Feldspar, Calcite, Limestone
Capacity: 0.5~8 (t/h) Main Motor Power: 55-710(kW)
Voltage: 220V/380V/440V Application: GGBS Production Line, Cement Production Line
Solution: Customized Equipment Condition: New
High Light:

Φ3.5×10 Vertical Raw Mill

,

Φ1.2×4.5 Vertical Raw Mill

,

Φ3.5×10 roller ball mill

Product Description

Φ1.2×4.5-Φ3.5×10 Vertical Raw Mill Less Abrasion And Long Service Life



Vertical Raw Mill Introduction:

As one of the important beneficiation equipment, the rod mill relies on the pressure and grinding force of the steel bar to grind the ore. It has the advantages of mature production technology and simple and scientific process. The liner and steel rod of the rod mill are the main components, and their quality affects the production capacity and service life of the rod mill. The selection of the liner and steel rod of the rod mill for beneficiation is introduced below.

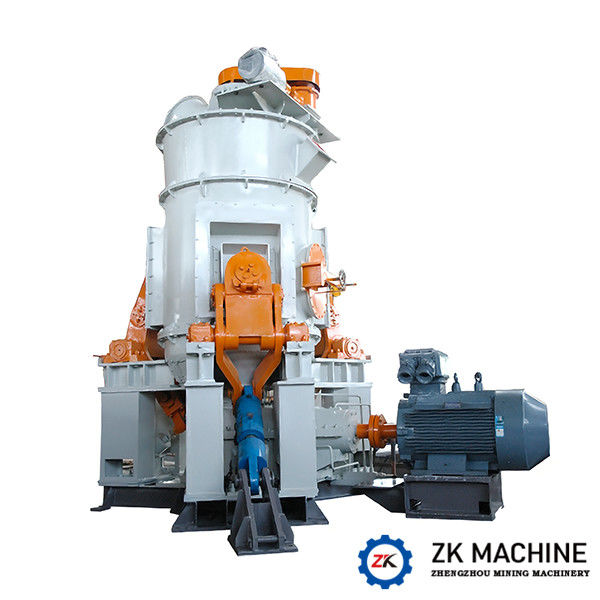

Quartz Feldspar Φ1.2×4.5 Φ3.5×10 Vertical Raw Mill 0

Our Vertical Raw Mill Advantages:
1. The material is mainly broken and pulverized by the weight of the roller and the pressure of the pressurizing device. During the grinding process, 1 the material is always subjected to the pressure of the grinding roller while the material between the grinding roller and the millstone is subjected to the effect of multi-directional stress, thereby improving the grinding capacity and grinding efficiency.
2. As the material get fully contact with the hot gas after enter the mill, and then suspended in the hot gas after grinding, which can fully 2 s ed ing exchange heat energy and dry the material while grinding.
3. The grinding pressure of roller is provided by the hydraulic system, which is passed to the grinding roller by the pressure device and the rocker device and then applied to the material. Owing to the pressure regulation of the hydraulic system, it can change the grinding pressure to meet the requirements of grinding materials with different hardness.
4. For avoiding the violent vibrati situation caused by the direct contact of the roller and disc when the machine in tion, there should be 4 ing opera certain gap between the grinding roller and disc. A position limiting device is designed not only to adjusting the gap size between them, but to observing the material thickness under roller any time, thereby ensuring the mill with safety and economic operation.



Quartz Feldspar Φ1.2×4.5 Φ3.5×10 Vertical Raw Mill 1

5. Roller sheath and liner adopt high hardness alloy wear-resistant materials, with less abrasion and long service life. 5 disc
6. Under the function of accessory hydraulic cylinder, the roller can be removed outside of mill for inspection and repair easily.
7. There has device around the grinding disc to prevent disc base wearing, adjust the air speed of air ring and the material thickness, to guarantee 7 the vertical mill' capacity and operation economical.
8. The separator is 8 composed of converter motor, gearbox, rotor, shell and so on. The motor drive rotator through gearbox and getting different fineness product by adjusting the speed of motor.
9. The lubrication oil station provides oil to lubricating system of main gearbox and generation the circle lubrication to guarantee the main gearbox operation normally.



Quartz Feldspar Φ1.2×4.5 Φ3.5×10 Vertical Raw Mill 2



Specifications:



specification

capacity

(t/h)



speed

(r/min)



Grinding media

(t)

motor reducer weight(t)
model

power

(kW)

model speed ratio
Φ1.2×4.5 1.7 30.3 5 YR250M-6 55 ZD30-8 4.481 13.1
Φ1.5×5.7 4.5 26.34 11 JR127-8 130 ZD40-7 4 25
Φ1.83×7 11 24.5 20 JR138-8 245 ZD60-8 4.5 37.2
Φ2.2×7.5 16-22 21.4 32 JR158-8 380 ZD70-9 5 53.6
Φ2.4×13 35-38 19.4 69 YR800-8 800 JDX800/MBY800 6.33 78
Φ2.6×13 50-55 19.5 83 YR1000-8/1180 1000 JDX800/MBY800 4.5
Φ2.8×10 40-48 19.7 70 YR800-8/1180 800 D110A 37.5
Φ3.0×12 55-58 18 100 YR1250-8/1430 1250 JS110-A 41.1
Φ3.2×10 55 17.6 98 YR1000-8/1180 1000 JS110 41.5
Φ3.5×10 73 16.8 118 YR1250-8 1250 JS110-A   153.7(without motor)
