China Active Lime Production Line manufacturer

Portable Belt Conveying Equipment Space Saving High Transportation Capacity

Product Details:
Place of Origin: CHINA
Brand Name: ZK CORP
Certification: ISO,CE
Model Number: Portable Belt Conveyor
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard package for belt conveyor
Delivery Time: 30days
Payment Terms: D/A, T/T, L/C, D/P, T/T, Western Union, MoneyGram
Contact Now

Detail Information

Product Name: Portable Belt Conveyor Manufacturers Supplier Condition: New
Belt Width: 500~2600mm Application: Coal Mining, Power Plant
Frame Material: Steel Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas Motor Type: AC Motor
Voltage: 240v/380V/440 Spare Parts: Supply All Using Life
High Light:

screw conveyor machine

,

chain conveyor system

Product Description

Portable Belt Conveyor Manufacturers Supplier in Philippines





Application range of Belt Conveyor:

Belt conveyors can be widely used in coal, mining , metallurgical , ports and wharf, chemical, petroleum and mechanical industry, to transport various kinds of bulk materials and mass materials.
Bulk material such as coal,lime stone,irono ore and clean coal,etc,.

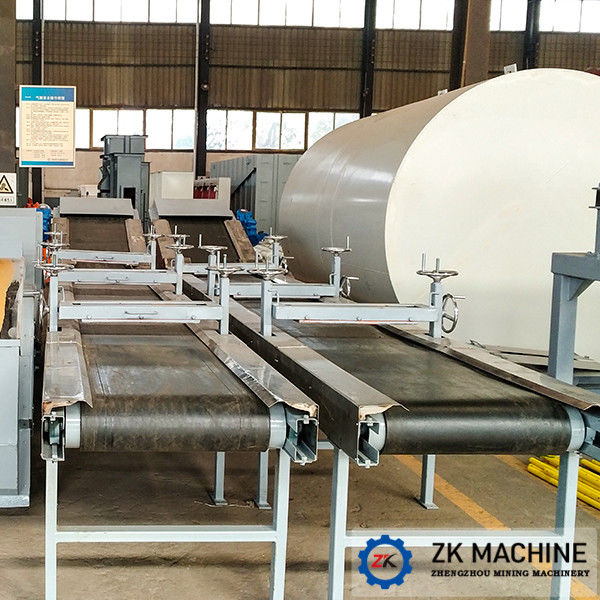

Portable Belt Conveying Equipment Space Saving High Transportation Capacity 0



Working Principle:
The belt conveyors manufactured by ZK Corp mainly have various types: please Click for detailed information.

DJ Large Angled Belt Conveyor: It adopts corrugated sidewall belt and diaphragm plate. Its maximum angle of inclination can reach 90 degree, which will save a lot of floor space, equipment investment and construction cost.DTII Fixed Belt Conveyor: It has features of large capacity, long conveying distance, easy operation & maintenace etc, which is widely used in mining, coal, metallurgy, chemical industries.

Portable Belt Conveyor: It can be used for transport bulk material or bags. It can be divided into rise-and-fall and non rise-and-fall type, according to different transport requirements.

TD 75 Belt Conveyor: It has the advantages of large conveying capacity, long conveying distance, stable running, easy operation etc

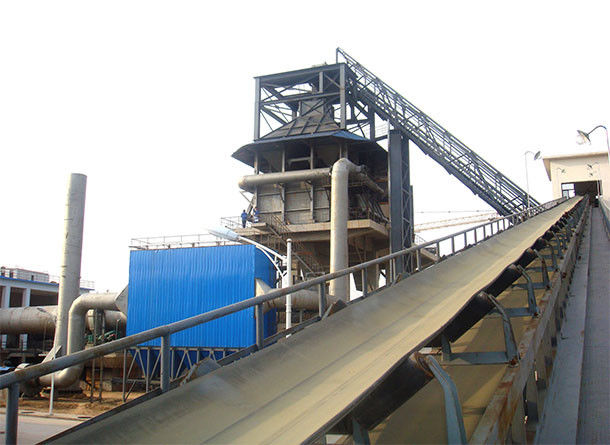

Portable Belt Conveying Equipment Space Saving High Transportation Capacity 1



General Technical Parameter:



Spec Rubber belt

Length

(m)

Dia. of drive drum

(mm)

Max. feeding size

(mm)

Capacity

(m³/h)

Power

(kW)

Width (mm)

Speed

(m/s)

Slope

(°)

DTⅡ-500 500 0.8~2.5 0~20° 2~240 400,500,630 100 69~217 1.5~30
DTⅡ-650 650 0.8~2.5 0~20° 2~240 400,500,630 150 127~397 1.5~45
DTⅡ-800 800 0.8~3.15 0~20° 2~240 400,500,630 200 198~781 2.2~75
DTⅡ-1000 1000 0.8~3.15 0~20° 2~240 500,630,800 300 324~1622 7~100



Our Belt Conveyor Projects in Different Industry:

Heavy Duty Portable Belt Conveyor Manufacturer



Long Distance Belt Conveyor Projects:

Heavy Duty Portable Belt Conveyor Manufacturer



Belt Conveyor Workshop Show:

Heavy Duty Portable Belt Conveyor Manufacturer

Our service:

Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment, according to your special demand.



Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.



After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.



Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.



FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.

Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.

Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
