Low Noise Vibratory Sand Screening Machine Multifunctional For Coal Ore

Product Details:
Place of Origin: CHINA
Brand Name: ZK CORP
Certification: ISO,CE
Model Number: vibrating screen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: MEET THE SHIPPMENT REQUIRMENTS
Delivery Time: 30DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 PER MONTH
Contact Now

Detail Information

Product Name: Vibratory Sand Screening Machine Model: ZSG1237,2ZSG1860
Sieve Layer: 1-4 Feeding Size: ≤300(mm)
Capacity: 10-600(t/h) Spare Parts: Supply All Using Life
After Sale Service: Engineers Available To Service Machinery Overseas Installation: Under Supervision Of Our Engineer
Voltage: Local Voltage Warranty: 12 Months
High Light:

vibro screen machine

,

vibratory sand screening machine

Product Description

ZK Series Sand Vibrating Screen Machine for Coal, Ore

Stone Vibrating Screen Machine Description:

Vibrating screen is particular designed for separating materials into various sizes for further processing in

Crusher and widely used in building material,energy,chemistry, etc. ZSWVibrating Screen has long streamline and many specifications suitable for various screening application. ZSW Vibrating Screen adopts eccentric shaft vibration exciter and partial block which helps to adjust amplitude.

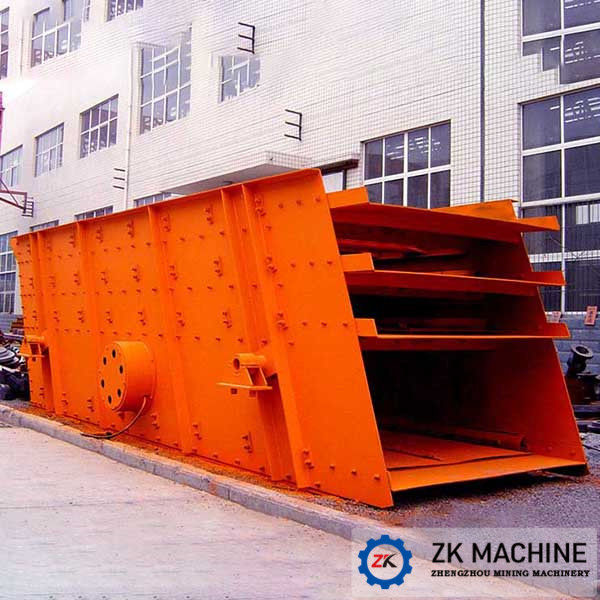

Low Noise Vibratory Sand Screening Machine Multifunctional For Coal Ore 0

Stone Vibrating Screen Machine Application:

The vibrating screen is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.

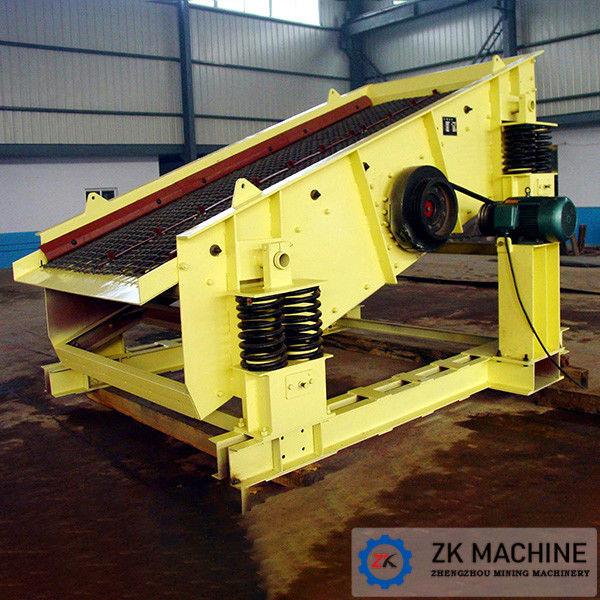

Low Noise Vibratory Sand Screening Machine Multifunctional For Coal Ore 1

Stone Vibrating Screen Machine Technical Data:

Model Screen deck Max feed size(mm) Motor power(kw) Capacity(t/h)
  Area(m3) Installation slope(?)
ZK1022 2.25 -5-5 <250 3X2 2.2
ZK1230 3.6 -5-5 <250 4X2 2.6
ZK1237 4.5 -5-5 <250 5.5X2 3.1
ZK1437 5.25 -5-5 <250 5.5X2 3.2
ZK1445 6.3 -5-5 <250 7.5X2 4.1
ZK1637 6 -5-5 <250 5.5X2 3.5
ZK1645 7.32 -5-5 <250 11X2 4.5
ZK1837 6.75 -5-5 <250 11X2 5
ZK1845 8.1 -5-5 <250 11X2 5.5
ZK1852 9.45 -5-5 <250 11X2 5.9
ZK2045 9 -5-5 <250 11X2 6
ZK2052 10.5 -5-5 <250 11X2 6.4
ZK2060 12 -5-5 <250 15X2 7.6
ZK2445 10.8 -5-5 <250 15X2 7.4
ZK2452 12.6 -5-5 <250 15X2 8.2
ZK2460 14.4 -5-5 <250 15X2 9.2
ZK3045 13.5 -5-5 <250 15X2 10
ZK3052 15.75 -5-5 <250 22X2 10
ZK3060 18 -5-5 <250 22X2 11
ZK3645 16.2 -5-5 <250 22X2 12.2
ZK 3652 18.9 -5-5 <250 22X2 13.4
ZK 3660 21.6 -5-5 <250 22X2 14.3
ZK 3675 27 -5-5 <250 30X2 17.1
2ZK1022 2.25 -5-5 <250 4X2 3
2ZK1230 3.6 -5-5 <250 5.5X2 3.7
2ZK1237 4.5 -5-5 <250 7.5X2 4.4
2ZK1437 5.25 -5-5 <250 7.5X2 5
2ZK1445 6.3 -5-5 <250 15X2 6.9
2ZK1637 6 -5-5 <250 15X2 6.9
2ZK1645 7.32 -5-5 <250 15X2 8.6
2ZK1837 6.75 -5-5 <250 15X2 7.9
2ZK1845 8.1 -5-5 <250 15X2 8.1
2ZK1852 9.45 -5-5 <250 15X2 9
2ZK2045 9 -5-5 <250 15X2 9.1
2ZK2052 10.5 -5-5 <250 22X2 10.1
2ZK2060 12 -5-5 <250 22X2 10.8
2ZK2445 10.8 -5-5 <250 22X2 11
2ZK2452 12.6 -5-5 <250 22X2 12.5
2ZK2460 14.4 -5-5 <250 22X2 13.5
2ZK3045 13.5 -5-5 <250 30X2 15.4
2ZK3052 15.75 -5-5 <250 37X2 16.9
2ZK3060 18 -5-5 <250 37X2 18.2
2ZK3645 16.2 -5-5 <250 45X2 21
2ZK3652 18.9 -5-5 <250 45X2 24
2ZK3660 21.6 -5-5 <250 45X2 25.4
