|Place of Origin:||China|
|Certification:||CE ISO Certification|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export standard container or as customers' requirements|
|Delivery Time:||30 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||100 Set / Sets per Month|
|Product Name:||Vertical Mill For Slag Grinding / Clinker Grinding Vertical Mills||Condition:||New|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Warranty:||12 Months|
|Capacity:||5-58TPH||Material:||Coal, Quartz, Feldspar, Calcite, Limestone, Dolomite|
|Motor Type:||AC Motor||Spare Parts:||Supply All Using Life|
vertical roller mill,
vertical coal mill

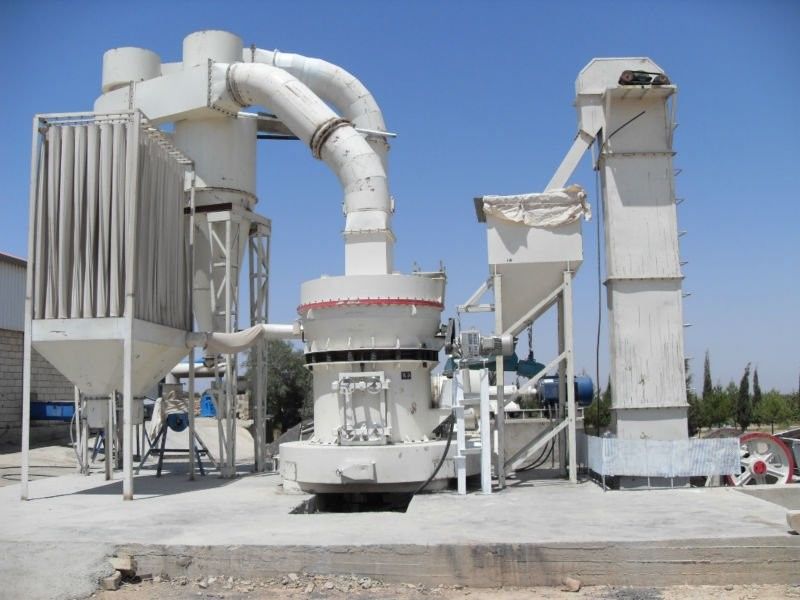

Vertical Grinding Mill for Coal / Coal Grinding Mill for Sale

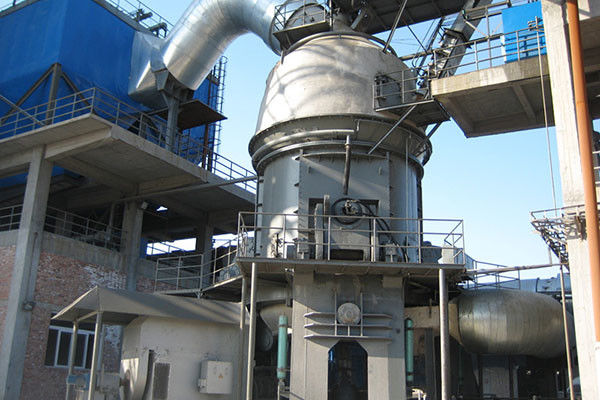

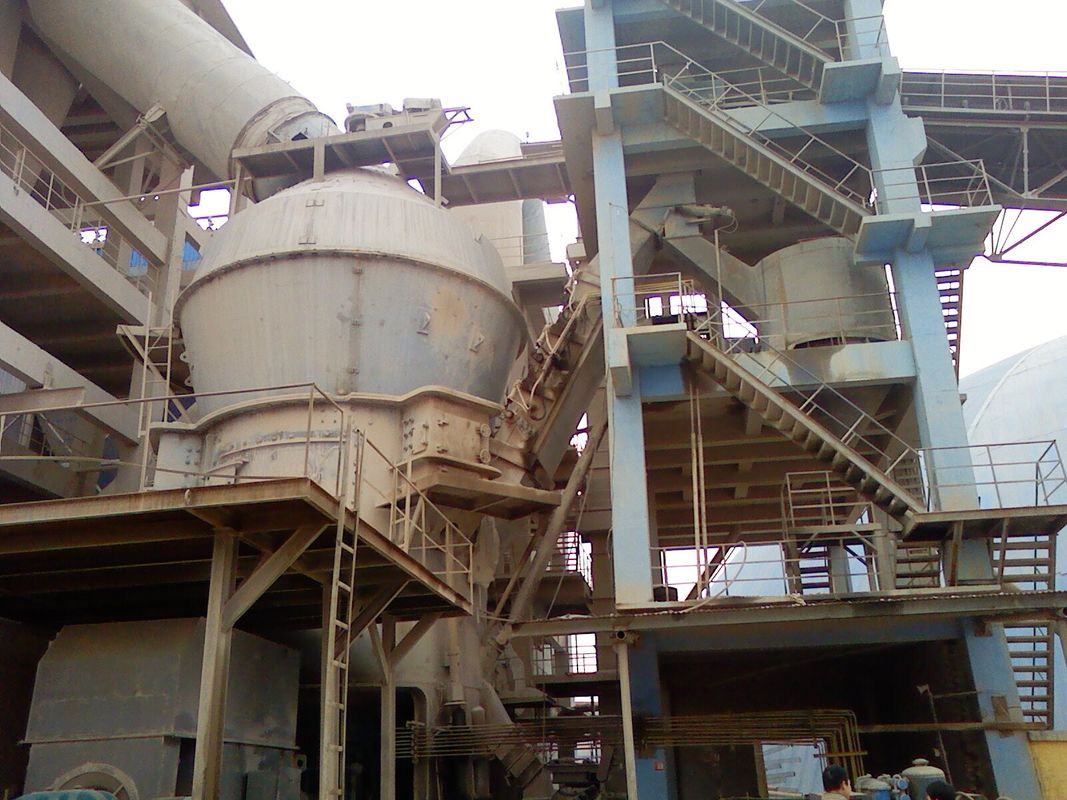

Vertical raw mill is also called raw meal vertical roller mill, and it is the core equipment applied for cement raw meal grinding. Cement vertical raw mill fineness of final product can be adjusted between 80 and 425 meshes and part of then can add up to 1000 meshes of final being equipped particular parts,the machine can produce coarse powders ranging from 30 to 80 meshes. Cement vertical raw mill produced by our company can cater to 1000-10000t/d cement production line raw material supply. Cement vertical raw mill combines drying, grinding and separation process into just one unit, making the footprint of the installation smaller and reducing the civil engineering costs, the cost of a vertical cement mill project is around 20 – 25% greater than a ball mill system of the same capacity.
1. Composite separator improves the efficiency of the powder.
2. With the function of automatic lifting and falling, can realize no-load starting.
3. Welded type arc plate is used for sealing, it features simple structure, reliable performance, well-sealed structure.
4. By means of the roller swing-out device, the grinding rollers can be turned out of the mill, which is in favor of maintenance.
5. The limit mechanism avoids the fiction and crash of metals between grinding roller and grinding plate, increasing the rotating stability and security.
6. Operating pressure of hydraulic system is low, can reduce the leakage failure and the mill vibration, and is good for operation and management.
7. The centralized circulating oil lubrication is applied to the grinding roller bearings, which ensures the bearing operate at constant temperature and with pure oil, so that longer service life is achieved.
1. High grinding efficiency and low power consumption. This kind of machine consumes 20-30% lower power. And with the growing of moisture content, its energy-saving effect will be more obvious.
2. Strong dry ability. Air is used to send materials, and the temperature of the air can be controlled according to the moisture content of materials.
3. Large feeding size. The feeding size can be as large as 5% of the diameter of the grinding diameter, that is, 40 to 100mm. Therefore, secondary grinding is unnecessary for large-scale and medium vertical mill.
4. Stable chemical composition and even particle size products.
5. Simple process flow and small in size. There is a segregator in the cement vertical raw mill, which makes powder separator and elevator unnecessary. Grinded dusty air can directly enter into the environmental protection equipment.
6. Low noises, few dust, and environment friendly. There is no direct contact between the grinding rollers and grinding disc, so there is no impact sound caused by the colliding between the steel balls or between the steel ball and lining plate.
|Model||Grinding Table Diameter (mm)||Roller Diameter (mm)||Roller Number (n)||Motor (kW)||Output (t/h)|
Note: mill spectral pattern benchmark
1. Material medium friction (MF)=0.9~1.0;
2. Material moisture max 7%;
3. Refined powder granularity 80μmR 12~15%;
4. Refined powder moisture 0.5~1.0%;
5. The concrete mill installed power and technology parameter will be adjusted appropritely basing on the actual material property and requirements of owner;
6. The above specification also applies to limestone powder mill, and the concrete type selection shall be decided according to material property.
