Low Noise Ore Dressing 600t/H Vibrating Screen Machine

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: ZK Series Vibrating Screen
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month
Contact Now

Detail Information

Product Name: High Frequency Screen Capacity: 10-600(t/h)
Screen Area: 7-14(m2) Material: Ore Dressing, Building Material
Shipping Port: Shanghai, Qingdao Warranty: One Year
Spare Parts: Supply All Using Life Motor Type: AC Motor
Voltage: 220V/380V/440 Installation: Under Supervision Of Our Engineer
High Light:

600t/H Vibrating Screen Machine

,

Ore Dressing Vibrating Screen Machine

Product Description

Low Noise Vibrating Screen Machine / Large Processing Ability High Frequency Screen





Introduction

ZK Series Vibrating Screen is primarily applied coal, metallurgical, power generation, building material, water conservancy, light and chemical industries and other industries. Highly efficient screening machine classify coal, ore, coke and other bulk materials.





Our Advantages​ of Vibrator Screening Equipment:

1. Motor and vibration exciter use belt drive, stable running and less impact for motor;
2. High screening efficiency, large process volume.
3. Screen mesh is Wear Resistance, fatigue resistance, high classification precision.
4. Use steel spiral spring as damping device, reliable performance, long service life.
5. Use axis eccentricity as exciter, strong exciting force, which can make stuck material jump out, avoid mesh block.
6. Angle of screen mesh can be change to control process volume.

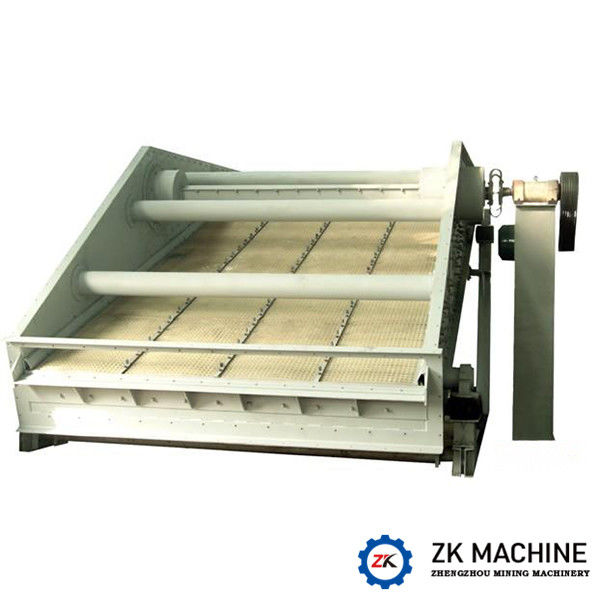

Low Noise Ore Dressing 600t/H Vibrating Screen Machine 0



Working Principle of High Frequency Screen:

The straight shaking movement is realizedby two unbalanced gravities of high frequency screen. Two motors drive upperand lower shaft separately do reversed rotation movements. The existing forces,produced by synchronous opposite rotation and formed 30°with screen face, are overlapped. At the same, existing forces inother direction are offset. Then the single direction existing force is formedso that the screen shaking reciprocally along straight line. Because the screenis shaking along overlapped exciting force in high frequency and no shaking inother direction, the screen is working stably.

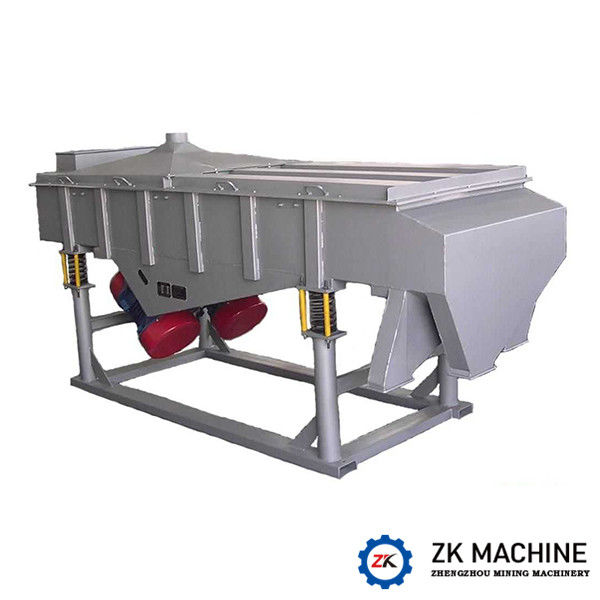

Low Noise Ore Dressing 600t/H Vibrating Screen Machine 1



Sand Screening​ Specifications:



Model

Screen

layer

deck size

(m³)

Vibration

frequency

(r/min)

Double-

Amplitude(mm)

Capacity

(m³/h)

Motor power(kw)
2YK1224 2 2.88 970 6-8 20-120 5.5
YK1235 1 4.2 970 6-8 20-150 5.5
2YK1235 2 4.2 970 6-8 20-150 7.5
3YK1235 3 4.2 970 6-8 20-150 7.5
4YK1235 4 4.2 970 6-8 20-150 11
YK1545 1 6.75 970 6-8 20-150 11
2YK1545 2 6.75 970 6-8 20-150 15
3YK1545 3 6.75 970 6-8 20-150 15
4YK1545 4 6.75 970 6-8 20-150 18.5
YK1548 1 7.2 970 6-8 20-150 11
2YK1548 2 7.2 970 6-8 20-150 15
3YK1548 3 7.2 970 6-8 20-150 15
4YK1548 4 7.2 970 6-8 20-150 18.5
YK1860 1 10.8 970 6-8 32-350 15
2YK1860 2 10.8 970 6-8 32-350 18.5
3YK1860 3 10.8 970 6-8 32-350 18.5
4YK1860 4 10.8 970 6-8 32-350 22
YK2160 1 12.6 970 6-8 66-720 18.5
2YK2160 2 12.6 970 6-8 66-720 22
3YK2160 3 12.6 970 6-8 66-720 30
4YK2160 4 12.6 970 6-8 66-720 30
YK2460 1 14.4 970 6-8 75-750 18.5
2YK2460 2 14.4 970 6-8 75-750 30
3YK2460 3 14.4 970 6-8 75-750 30
4YK2460 4 14.4 970 6-8 75-750 30
2YK2475 2 18 970 6-8 120-900 30
3YK2475 3 18 970 6-8 120-900 37
4YK2475 4 18 970 6-8 120-900 45
YK3060 1 18 970 6-8 200-900 30
2YK3060 2 18 970 6-8 200-900 37
3YK3060 3 18 970 6-8 200-900 45
4YK3060 4 18 970 6-8 200-900 4
