China Active Lime Production Line manufacturer

Large Capacity Vertical Grinding Mill , Anthracite Coal Grinding Mill

Product Details:
Place of Origin: China
Brand Name: ZK CORP
Certification: ISO,CE
Model Number: HRM800,HRM1100,HRM1250,PRM23,PRM25
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1. small parts are wooden box package. 2. main engine nude packing, container, or upon customers requirement.
Delivery Time: 30Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Per Year
Contact Now

Detail Information

Capacity: 5-58TPH Material: Coal, Quartz, Feldspar, Calcite, Limestone, Dolomite
Condition: New Type: Vertical Grinding Mills
Motor Type: AC Motor After Sales Service: Ce: The Whole Time
Warranty: 12 Months
High Light:

vertical roller mill

,

vertical coal mill

Product Description

Large Capacity Anthracite Coal Powder Vertical Mill,Mill In Coal Grinding



Coal vertical mills are designed to achieve the maximum rated capacity grinding a design coal with a grindability of 55 HGI and 8-12 percent moisture and achieving a discharge fineness of 70 per cent passing a 200 mesh screen (74 micron) and 99.5 per cent passing a 50 mesh screen. Variation of the coal hardness and/or moisture content will effect, up or down, the discharge capacity or the discharge fineness.



To achieve these design considerations it is essential that the grinding elements are in good condition and they maintain a consistent profile. The loss of the grinding profile results in a loss of grinding efficiency, meaning the pulveriser must work harder to achieve an equal result.



Ultimately a point will be reached in which either a loss of capacity or a loss of fineness will result under uniform conditions. Longer lasting, more consistent grinding elements are crucial to pulveriser operation yielding longer operating campaigns, reduced maintenance and a lower overall invested cost.

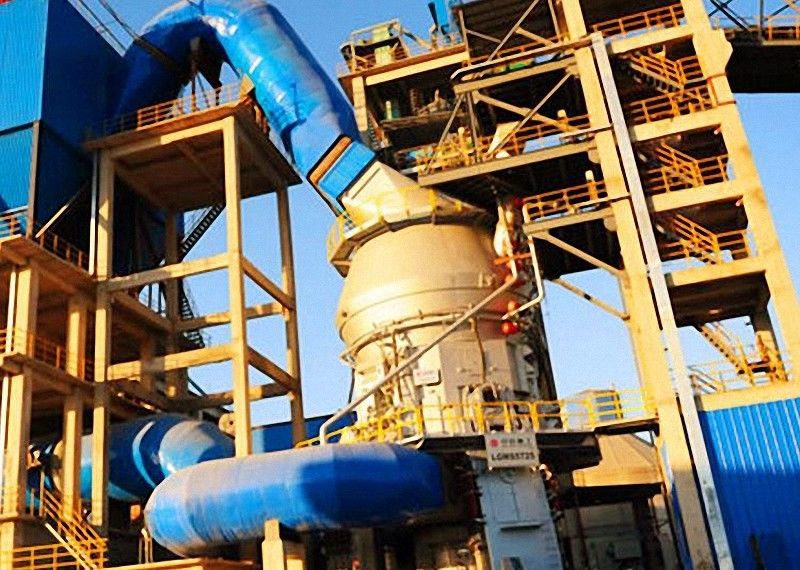

Large Capacity Vertical Grinding Mill , Anthracite Coal Grinding Mill 0



Coal vertical mills structure

1. Separating efficiency increased by combined separator.

2. No need to prepare material on the disc before start up, the function including auto lift and fall roller, and on-load staring can be achieved.

3. The sealing adopt welding arc panel, structure is simple and reliable with good sealing effect.

4. The grinding roller can be turn out from the mill easily by the roller turning device, and convenient for maintenance.

5. The grinding roller cover can be used in flip side and extending the abrasive using life.

6. The grinding roller limited device is guarantee the gap between roller and disc, prevent the metal friction and collision, strengthen the safety.

7. The roller grinding pressure adopts solid-gas pressure, remote control pressing, lift roller and modify the pressure and realized unattended operation on site.

8. The roller bearing adopts concentrate circulating lubrication by thin oil to guarantee the bearing working under the condition of low temperature and clean oil, the using life can be extending.

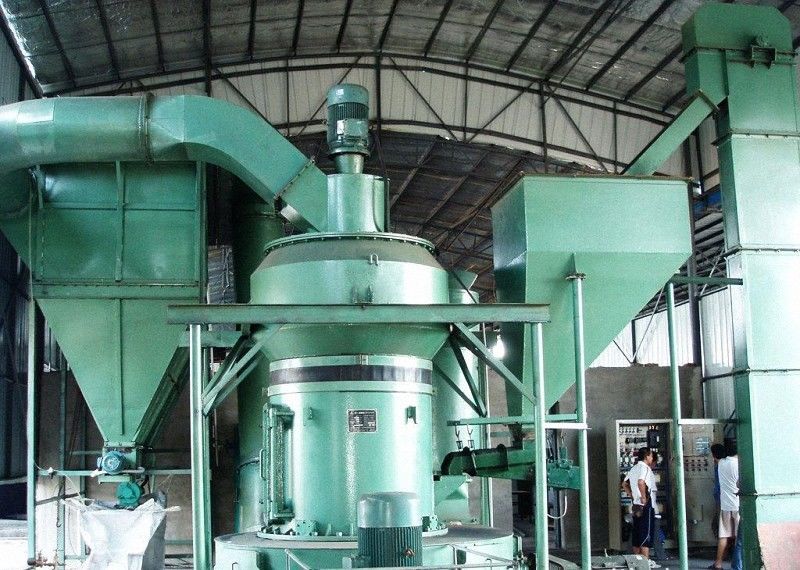

Large Capacity Vertical Grinding Mill , Anthracite Coal Grinding Mill 1



OUR ADVANTAGE

1.Force-Feed Lubrication. System Force-feed lubrication system extends the service life of bearing by 2.5 times.

2.Maximum Particle Fineness. Traditional roller mill either uses a static separator or dynamic separator to separate fine powder from coarse particles.Vertical coal mill brings together both types of separators for more efficient, adjustable material separation.

3.20-40% Electricity Savings. Vertical coal mill uses 20% to 40% less electricity than a traditional air-swept ball mill for the same amount of grinding task.

4.Great Drying Performance. Air-swept milling method allows our mill to handle coals of up to 10% moisture content via varying its air flow rate and temperature.



Large Capacity Vertical Grinding Mill , Anthracite Coal Grinding Mill 2



Technical Data

Parameter Unit HRM800 HRM1100 HRM1250 HRM1300 PRM17 PRM23 PRM25
Capacity T/H 5-7 10-12 16-18 20-25 26-35 40-45 50-58
The size of grinding material mm 0-40 0-40 0-40 0-40 0-40 0-50 0-50
The moisture of grinding material % <10 <10 <10 <10 <10 <10 <10
Fineness R0.08 % 8-12 8-12 8-12 8-12 8-12 8-12 8-12
The moisture of product % <1 <1 <1 <1 <1 <1 <1
Power KW 55 110 160 200 400 400 450
The wind temperature of input ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
The wind temperature of outlet 80-100 80-100 80-100 80-100 80-100 80-100 80-100
The air volume of outlet m3/H ≈10000 ≈20000 ≈30000 ≈40000 ≈80000 ≈80000 ≈100000
The weight of equipment T 16 22 32 40 96 135 167



Large Capacity Vertical Grinding Mill , Anthracite Coal Grinding Mill 3
