China Active Lime Production Line manufacturer

High Temperature Pump Industrial Rotary Dryer , Sewage Sludge Rotary Drying Equipment

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: Various models
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month
Contact Now

Detail Information

Product Name: High Temperature Pump Sewage Sludge Drying Equipment With Factory Price Condition: New
Capacity: 1-40(t/h) Material: Lead And Zinc Mineral Raw Material
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
Motor Type: AC Motor Voltage: 220V/380V/440V
Spare Parts: Supply All Using Life
High Light:

rotary dryer machine

,

rotating drum dryer

Product Description

High Temperature Pump Sewage Sludge Drying Equipment



Sewage Sludge Drying Equipment Introduction:

Sludge dryer is one professional drying equipment produced by the mining machinery manufacturers, which can be used in processing some materials such as sludge, magnetic ores, concentrate ores of metal and non-metal, the clay of cement industry and other industries. The main features of this machine are higher working efficiency, reasonable structure, significant design, higher production capacity, simple operation.


The Application of Sludge Dryer:
This machine can be widely used in the activated sludge drying, sewage sludge drying, petrochemical sludge drying, paper making sludge drying, printing and dyeing sludge drying, tanning sludge drying, municipal sludge drying and some materials with high moisture.

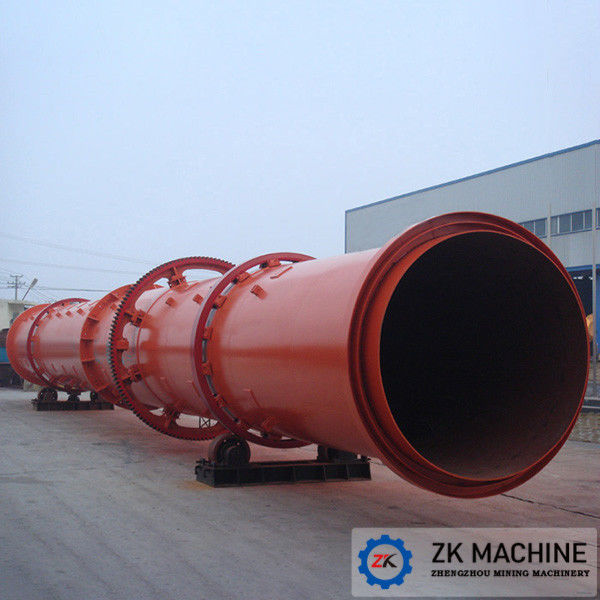

High Temperature Pump Industrial Rotary Dryer , Sewage Sludge Rotary Drying Equipment 0



Structure of Fly Ash dryer:
Sludge dryer is mainly compose of driving device, supporting roller, thrust roller, cylinder, kiln inlet, kiln outlet and sealing device.
1. 2-3 supporting points can guarantee the contacting surface between supporting roller and tyre is paralleled with axis line of cylinder during installation.
2. Supporting device is antifriction bearing (occasionally uses slide bearing). This design has simplified the supporting device of supporting roller, and reduced the useless power loss during operation. It has the features like easy operation and maintenance.

3. Suitable shim between tire and shell will ensure the tire ring on the shell tightly to increase the shell strength.
4. The main driving system uses new type AC variable frequency technology. Compared with electromagnetic speed control and DC speed control, that can save energy, have large range & high precision of speed regulation, high efficiency and running smoothly.
5. Radial direction contacting type sealing device is adopted at kiln inlet and outlet. They are perfect suitable for dimension tolerance of cylinder and skewing movement of cylinder. This sealing device’s feature is good performance, longer working life and easy for replacement.

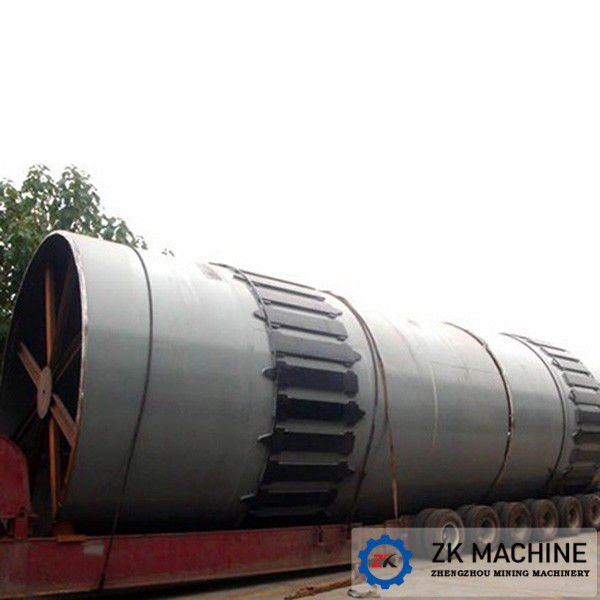

High Temperature Pump Industrial Rotary Dryer , Sewage Sludge Rotary Drying Equipment 1



Our Advantages of Coal Powder Drying Equipment:
1. Reasonable partition can make the effect of materials dispersion become better.
2. The unique arch breaker and shaking device can effectively solve the problems including feeding device bonded, agglomeration and movement blocked in the drying process.
3. Taking the downstream craftsmanship of materials and heat flow can keep the origin of the materials.
4. Optimizing the structure design, prolonging the lifespan.


High Temperature Pump Industrial Rotary Dryer , Sewage Sludge Rotary Drying Equipment 2



Sludge Dryer​ Specifications:



specification cylinder Capacity(t/h) motor Power(kw) reducer
D(mm) L(mm) Slope(°) Speed(rpm) model
1212 1200 12000 1.8 5 2-5 Y160LM-6 11 ZQ500
1515 1500 15000 1.8 4.28 4-5 Y160L-6 18.5 ZQ650
1818 1800 18000 1.8 5 6-8 Y200LI-6 22 ZA650
2020 2000 20000 2.0 3.28 7-10 Y200L2-6 30 ZQ650
2222 2200 22000 1.8 2.8 9-14 Y250M-6 45 ZQ650
2424 2400 24000 2.5 2.82 14-16 Y280S-6 55 ZQ750
2626 2600 26000 2.5 2.58 16-18 Y280M-6 75 ZQ850
2828 2800 28000 2.5 2.55 20-22 Y315S-6 90 ZL115
3030 3000 30000 2.5 2.69 22-24 Y315L1-6 132 ZL130
3232 3200 32000 2.5 2.6 24-26 Y315M-4 200 ZSY450
3434 3400 34000 2.5 2.51 26-28 Y315L2-4 315 ZL130
3634 3600 36000 2.5 2.51 30-40 Y315L2-4 315 ZL130
4040 4000 40000 2.5 2.09 40-45 YKK4003-4 400 ZSY630
4242 4200 42000 2.5 2.09 45-46 YKK4005-4 400 ZSY630
