Fertilizer Granulation Equipment , Double Roller Granulator High Automatic Control

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: DG3530-DG6055
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month

Detail Information

Product Name: Double Roller Fertilizer Press Granulator Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Capacity: 1-6 (t/h) Material: Powder
Motor Type: AC Motor Spare Parts: Supply All Using Life
Voltage: 220V/380V/440
High Light:

disc granulator machine

,

fertilizer granulator machine

Product Description

Double Roller Fertilizer Press Granulator / Fertilizer Granulator Line



Double roller granulator is a machine for producing powder or small particle material with the special shape by rolling cyclinder extruding action. The granulator has the features of even outputting particle size, high rate of finished products, high production capacity, compact structure, reasonable layout, small area needed and high automatic control.

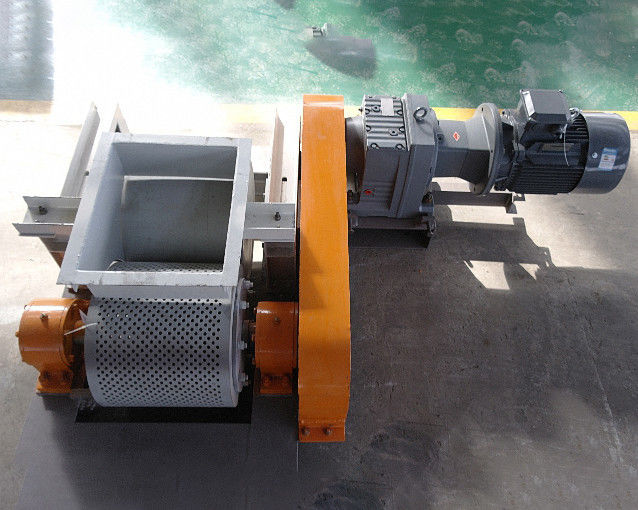

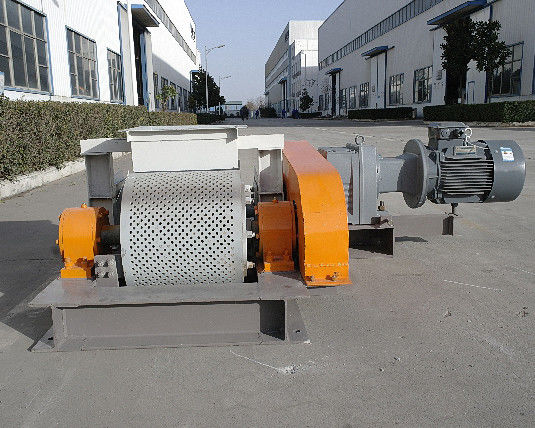

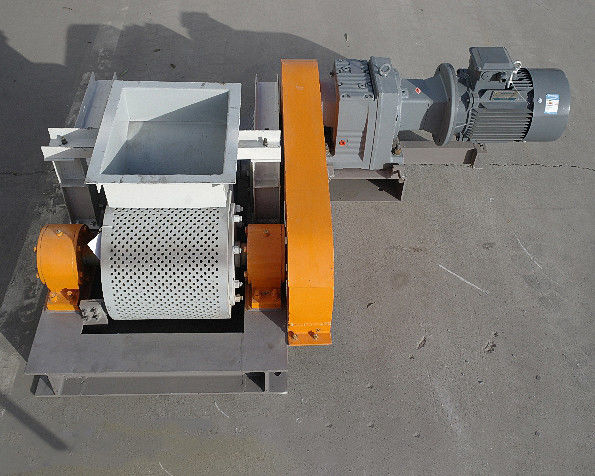

Fertilizer Granulation Equipment , Double Roller Granulator High Automatic Control 0



STRUCTURE

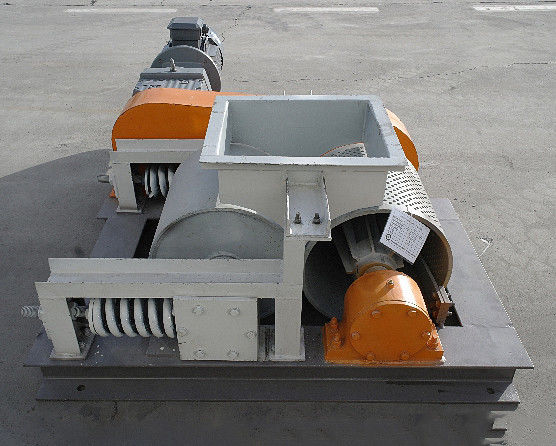

The double roller granulator is composed by fixed rolling device, movable rolling device, compact and adjusting device, frame, driving device and etc. The working principle is motor drive fixed roller by gear reducer, at the same time the fixed roller drive touch move rooler by fricition drive on roller face, materials enter into granulator by feeding chute, pressed by double roller, and compression moulding when through fixed roller model sag hole, the molding materials are discharged from outlet after cut by scraper.



OUR ADVANTAGE

1. The granulator has the features of even outputting particle size

2. High rate of finished products, high production capacity

3. Compact structure, reasonable layout

4. Small area needed and high automatic control.



Specifications



Model Roller Motor Power(kW)

Diameter

(mm)

Length

(mm)

Rotating Speed (r/min)
DG3530 φ350 300 58 5.5
DG4035 φ400 350 58 7.5
DG4540 φ450 400 58 11
DG5045 φ500 450 58 15
DG6055 φ600 550 65 18.5
