0.5-500 T/H Copper Rod Mill Customized Size For Non Ferrous Metal Grinding

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: According to different models
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month
Contact Now

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 12 Months Capacity: 0.5–500 T/h
Material: Lead And Zinc Mineral Raw Material Motor Type: AC Motor
Spare Parts: Supply All Using Life Size: Customized
Type: Rod Mill
High Light:

ball mill machine

,

ball mill equipment

Product Description

High Quality and Sell Well Rod mill of Non-ferrous Metal from China



Introduction:

MBS type rod mill grinding media are steel rod, mainly for ore processing, suitable for non-ferrous metal and non-metallic mineral resources, compared to the general grinding equipment, the most notable feature is the steel rod in the interior of MBS type rod mill contact the material was linear, this can ensure that the equipment has a certain selective grinding effect, through MBS type rod mill grinding materials have more uniform particle size, will not appear over powder phenomenon in the process of grinding, improve the overall application value of the finished material.

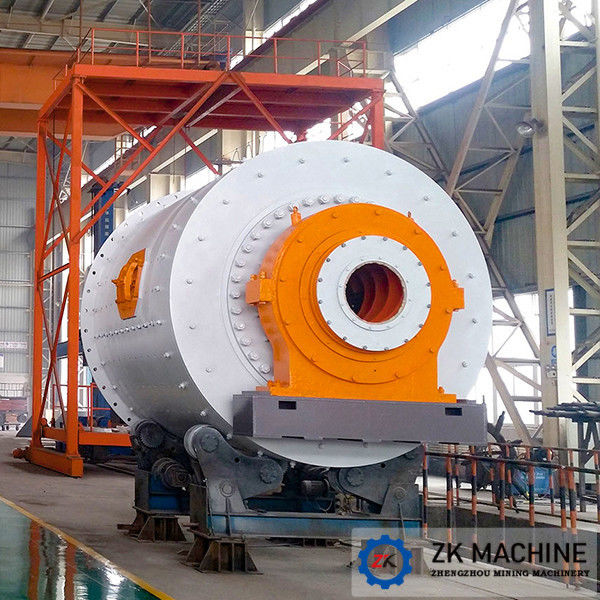

0.5-500 T/H Copper Rod Mill Customized Size For Non Ferrous Metal Grinding 0



Application of Rod Mill:
Rod mill is widely applied in metal and nonmetal mine, water conservancy, glass and construction materials industries, mainly suitable for grinding various ores and rocks and artificial sand-making. Our high-efficiency rod mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it has advantages of even discharging size and high capacity.



Rod Mill Structure:
The rod mill is composed by the cylinder part, feeding part, discharging part, main bearing part and driving part, which is similar with the other mills.

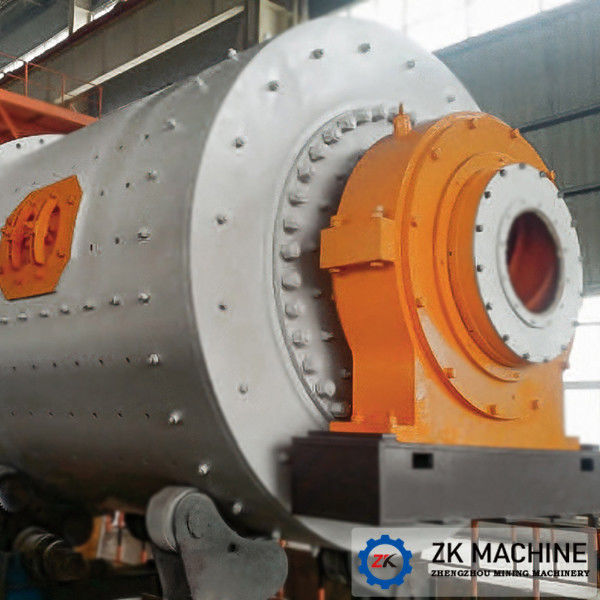

0.5-500 T/H Copper Rod Mill Customized Size For Non Ferrous Metal Grinding 1


Our Advantages:
1. The discharging granularity of rod mill is evener and the output is higher.
2. The grinding media contact with the ore in a linear manner, so that it has selective grinding function.
3. When used for coarse grinding, the processing amount of rod mill is higher than that of the ball mill with the same specification.



0.5-500 T/H Copper Rod Mill Customized Size For Non Ferrous Metal Grinding 2



Rod Mill Specification:



Model Shell Size(mm) Effective Volume (m³) Balls Weight(t) Rotating Speed(r/min) Power(kw) Discharge Size(mm) Capacity(t/h) Weight(t)
MB0924 Φ900×2400   3.1 29 22 2.5-0.2 10-2.9 6.6
MB1224 φ1200×2400   6.5 27 37 2.5-0.2 13-5 13.5
MB1530 φ1500×3000 5.0 8 23 75 2.5-0.2 12-5.5 16.71
MB1830 φ1800×3000 6.5 17 22.8 130 2.5-0.2 20-9.5 29.8
MB2136 φ2100×3600 11.0 28 20.9 210 2.5-0.2 35-14.8 49.4
MB2436 φ2400×3600 14.6 37 19 280 2.5-0.2 55-26 61.0
MB2740 φ2700×4000 20.5 47 17.5 400 5-0.8 165-50 84.3
MB3040 φ3000×4000 25.9 50 16.2 500 5-0.8 206-62 130
MB3245 φ3200×4500 33 56 15.5 630 5-0.8 228-70 138
MB3654 φ3600×5400 50 94 14.5 1000 5-0.8 340-103 192
