Mining Froth Flotation Separation Machine No Need Auxiliary Equipment

Mining Froth Flotation Separation Machine with Factory Price

Introduction:

Flotation machine is applicable for the extraction of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum and the separation of ferrous metals and non-metals. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral absorbs on bubbles, floats on the surface of slurry and then is scraped out, other minerals still stay.

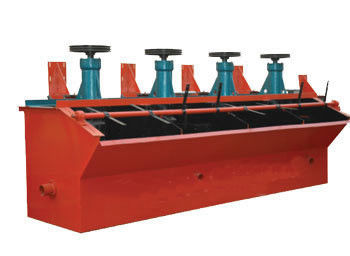

Mechanical Agitating Flotation Machine With Auto Air Suction
New structure of impeller is backwards inclined double impellers equipped with honeycomb duct and dummy bottom. Therefore, the slurry in the tank will cycle upward and downward in a fixed flow manner, which is helpful to the suspension of those coarse particles. Air and slurry are naturally sucked without need for foam pump.

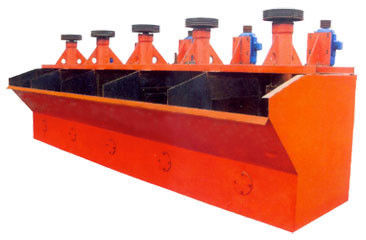

Mechanical Agitating Aeration Flotation Machine Set
Models XCF and KYF are enforced aeration flotation machine. It has a smaller diameter of impeller, thus lower peripheral speed, saving 30-50% of power. Because and air distribut
or is equipped in the tank, air is evenly dispersed. The impeller acts as a centrifugal pump, so as to make the solid particles suspending. The tank is mode as u type, reducing sand settlement to the least .Due to reasonable design of the impeller structure and the impeller space, impeller wearing is even, so , the service life of the impeller and stator are extended. Model KYF is unable to spontaneously suck slurry, while has low power consumption. In contrast, model XCF has the ability to automatically suck slurry, and may be allocated horizontally without need for foam pump, but consumes more power than model KYF. Therefore, model XCF and model KYF are combined into a set, i.e., XCF as the sucking tank, and KYF as the direct tank. The combined set can be arranged horizontally without foam pump either.

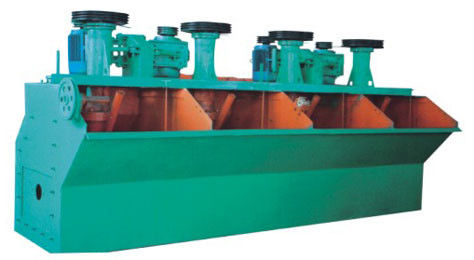

Mechanical Agitating Flotation Machine with Auto Air Suction
The BF flotation machine impeller is composed of the closed double frustum, may produce the strong slurry under to circulate, its characteristic: (1) the suction intensity is big, the power loss is low.(2)each trough has the suction, attracts the thick liquid and the flotation process function, from becomes the flotation process return route, does not need any supporting facility, the level disposition, is advantageous for the flow change.(3) the slurry circulation is reasonable, can maximum limit reduce the coarse sand precipitation.(4) is equipped with the slurry surface automatic control and the electrically controlled installment, the adjustment is convenient.

Working principle:

Flotation cell equipment is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electro motor.

When the flotation cells machine equipment works

1) The impeller of the flotation cells is driven by the spinning engine triangle to form the centrifugal formation and produce the negative pressure.

2) On one hand, large of inhaled air is mixed with the pulp;

3) On the other hand, the stirred pulp is mixed with the drug to fine the bubble, to make a certain mineral bond on the bubble. Adjust the height of the disc to control the liquid surface and the useful bubble will be scraped out.

Advantages:

1). Excellent air-absorption capacity;

2). Low energy consumption;

3). Optimized design, the mineral slurry loops reasonably in cells without any auxiliary equipment;

4). Self-control functions;

5). Special designed impeller can produce upper and lower circulation of mineral slurry respectively.

Parameters
