Place of Origin:
China
Brand Name:
ZK
Certification:
CE ISO Certification
Model Number:
Φ1.6x32--Φ4.7x72(m)

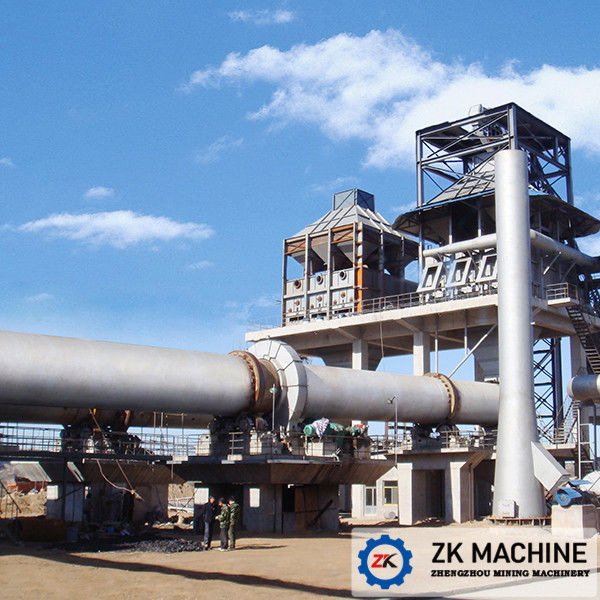

Rotary Kiln For Calcination Magnesium Rotary Kiln for Sale
Rotary Kiln Introduction:
The rotary kiln belongs to construction equipment. According to different material, the rotary kiln can be divided into: cement kiln, metallurgy kiln, and limestone kiln.
The cement kiln is mainly used for calcimine of cement clinker; there are dry and wet types. The metallurgy kiln is used in metallurgy industry and iron works for lean iron ore, chromium ore and ferronickel ore calcimine. Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and used aluminum hydroxide in aluminum vandal manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.
Lime kiln (active lime kiln) is used for calcimine of active lime and dolomite in iron works and alloy works.
Structure of Rotary Kiln:
The kiln is composed by the cylindrical shell, roller supporting device, supporting device with thrust roller, driving gear unit movable kiln head, sealing device at kiln inlet, coal dust pipe device, etc.
The kiln shell is designed to keep some inclination to level. It is supported by the roller supporting device and equipped with thrust roller device to control the up and down moving of the shell. The driving system is equipped not only the main driving gear unit but also the auxiliary driving used to keep the shell rotating even when the main power is broken so as to prevent the shell from any bending and distortion. As the kiln head and tail are sealed by advanced technology, the sealing of the kiln is fairly reliable.
Technical Parameters:
| Model |
Capacity (t/h) |
Speed (rpm) |
Slope (%) |
Support No. | Gearbox | Motor model |
Power (kw) |
| Ø1.6×32m | 2 | 0.58-2.85 | 4 | 3 set | ZQ75-50 | YCTZ50-4A | 18.5 |
| Ø1.6/1.9×36m | 2.5~3 | 0.53-1.59 | 4 | 3 set | ZQ110-7 | YCTZ50-4B | 22 |
| Ø1.9×39m | 3~3.5 | 0.53-1.59 | 4 | 3 set | ZQ125-7 | YCT315-4A | 37 |
| Ø2.2×38m | 5~6 | 0.214-1.64 | 3.5 | 3 set | Main ZS125-5-II | Main YCT315-4A | 37 |
| Auxiliary ZQ40-40 | Auxiliary Y112M-4 | 4 | |||||
| Ø2.2×45m | 4~5 | 0.214-1.64 | 3.5 | 3 set | Main ZS125-5 | Main YCT315-4B | 45 |
| Auxiliary ZQ40-40 | Auxiliary Y112M-4 | 4 | |||||
| Ø2.5×40m | 6~7 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-5 | Main YCT355-4A | 55 |
| Auxiliary ZS50-1 | Auxiliary Y160M-6 | 7.5 | |||||
| Ø2.5×50m | 5~6 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-5 | Main YCT355-4A | 55 |
| Auxiliary ZS50-1 | Auxiliary Y160M-6 | 7.5 | |||||
| Ø2.8×43m | 7~8 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-6 | Main YCT355-4B | 75 |
| Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | |||||
| Ø2.8×55m | 6~7 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-6 | Main YCT355-4B | 75 |
| Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | |||||
| Ø3×50m | 9~10 | 0.5-1.5 | 3.5 | 4 set | Main ZS165-3 | Main ZSN-280-11B | 125 |
| Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | |||||
| Ø3×60m | 7~8 | 0.5-1.5 | 3.5 | 4 set | Main ZS165-3 | Main ZSN-280-11B | 125 |
| Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | |||||
| Ø3.2×53m | 10~12 | 0.4-1.5 | 3.5 | 3 set | Main ZL130-16 | Main ZSN4-280-11B | 125 |
| Auxiliary ZL50-10 | Auxiliary Y180L-4 | 22 | |||||
| Ø3.2×64m | 8~10 | 0.4-1.5 | 3.5 | 3 set | Main NZS995-28VBR | Main ZSN4-280-21B | 160 |
| Auxiliary ZL50-9-2 | Auxiliary Y180L-6 | 15 | |||||
| Ø3.5×70m | 12~14 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSN-315-072 | 250 |
| Auxiliary ZSY180-31.5 | Auxiliary Y180L-4 | 22 | |||||
| Ø3.6×55m | 14~16 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSYN-315-072 | 250 |
| Auxiliary ZL65-16 | Auxiliary Y180L-4 | 22 | |||||
| Ø3.8×58m | 18~20 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSN315-072 | 250 |
| Auxiliary ZL50-14 | Auxiliary Y180L-4 | 22 | |||||
| Ø4.0×60m | 104 | 0.4-1.5 | 3.5 | 3 set | Main ZSY630-35.5 | Main ZSN4-355-092 | 315 |
| Auxiliary ZL65-16 | Auxiliary Y200L-4 | 30 |
The main products of company include: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions. At present, Henan Zhengzhou Mining Machinery Co., Ltd is the largest equipment supplier for magnesium production and has been on the leading position for 25 years in the market.
We have advanced production technology and management. Our professional engeneers and after-sales groups production technology can offer convienient service for our customers .
Our service: Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
Packaging Detail :
The main machinery is in nude packing and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.
