Industrial GGBS Turnkey Production Line Superior Performance Stable Running

Industrial GGBS Turnkey Production Line Superior Performance Stable Running

calcium carbonate production line

coal production line

Place of Origin:

CHINA

Certification:

ISO,CE

Model Number:

GGBS turnkey production line

Contact Us
Request A Quote
Product Details
Brand Name:
ZK
GGBS Grinding Capacity:
1 - 25 (t/h)
Cement Grinding Capacity:
3 - 50 (t/h)
Raw Material Grinding Capacity:
6 - 110 (t/h)
Application:
GGBS, Coal, Ore, Cement Production Line
Type:
Ball Mill/Vertical Mill
Service:
Design, Manufacturing, Sales Etc
Condition:
New
Main Equipment:
Ball Mill, Vertical Mill, Bucket Elevator, Dust Collector Etc
Process:
Crushing, Drying, Grinding, And Grading Conveying
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Delivery Time
30DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Industrial GGBS Turnkey Production Line Superior Performance Stable Running



As a new type of high-performance concrete admixture, Slag powder has the advantages of improved concrete compression, tensile, shear, bending and other features. Currently it has become the mainstream trend to use the slag powder as the replacement in concrete cement, building materials industries.

At present, the domestic large-scale vertical mill (/ball mill)production enterprises do not produce small and medium-sized equipment, and small vertical (ball) mill manufacturing plant does not have the design and manufacturing capabilities for the entire production line. In order to solve this problem, we design and manufacture 1, 3, 5, 8, 10 and 15.2 million tons for the whole production line, to meet the different needs, which has reasonable structure, advanced technology, stable and reliable operation, the main technical and economic indicators to achieve the domestic advanced level.

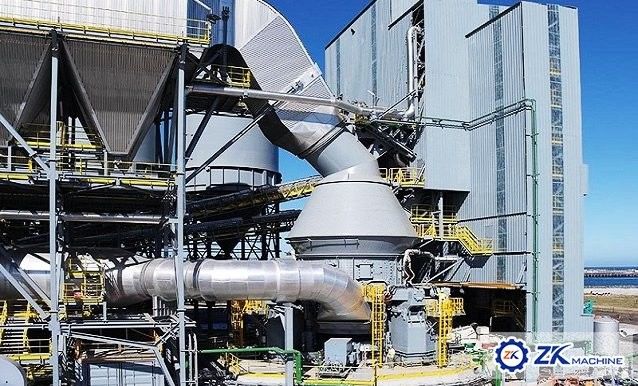

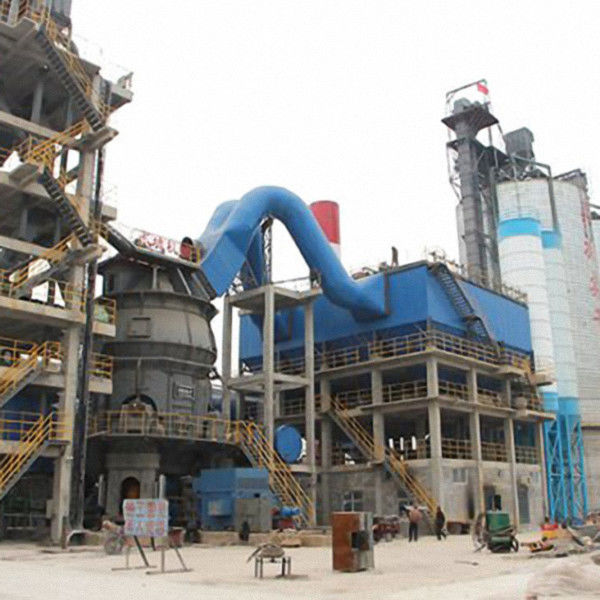

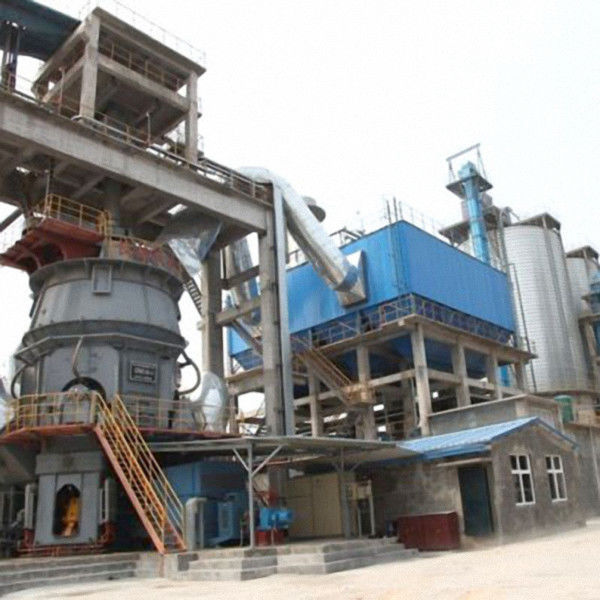

PRODUCTION PROCESS BY VERTICAL MILL
Slag is transported into the plant by truck and stored under the shed. After reclaiming by loader and metering by feeder, the material is delivered and de-ironed into the vertical mill by the belt conveyor and its magnetic separator.
After de-ironing the slag enter the vertical mill for grinding. Dried and grinded slag powder is collected by the separator and sent into the finished product silo by air chute and bucket elevator. The discharged slag is sent back to the mill by conveyor and elevator. The drying heat source is provided by an air heating furnace.



PRODUCTION PROCESS BY BALL MILL
Slag is transported into the plant by truck and stored under the shed. After reclaiming by loader and metering by feeder, the material is delivered into the dryer by belt conveyor for drying. After drying the slag enter the ball mill for grinding. Grinded slag powder is send into the separator by the bucket elevator for grading. Qualified power is sent into the finished product silo by air chute, hoist and elevator. Large particle powders return to ball mill for re-grinding. There is the dust filter at the discharge end of the ball mill. The slag dust is collected and transported into the finished product silo. The drying heat source is provided by an air heating furnace.



Industrial GGBS Turnkey Production Line Superior Performance Stable Running 0



Advantages:

1. Comprehensive service
We ZK company is the professional slag powder production line supplier. We can provide both ball mill and vertical mill production process, while providing 'turnkey' service from civil engineering to commissioning.

2. Serious Quality Control
ZKCorp has a strong capacity of manufacturing and could control product quality seriously with short delivery time. Expert Installation and After-service Team could ensure to finish plant installation and start running on time.

3. Low cost and proper investment.
Slag Vertical Mill Production Line from ZKCorp engages the advantages of simple process flow, high-efficiency of grinding, great drying capacity, efficient Powder-classifying, easily-adjustable outputting size, low noise and electricity-consumption, small mill consumption, high degree of automation, low running expense, which make it suitable for small and middle plant owner.



Parameters:

Vertical Mill Configuration Table

Hourly Capacity
(t/h)
Annual Capacity
(×10kt/a)

Vertical Mill Model
Disc Diameter
(mm)
Vertical Mill Motor Power
(kW)
Blast Furnace Slag Cement Raw Material Blast Furnace Slag Cement Raw Material Diameter Roller Diameter
1.5~2 3~4 6~8 1.5 3 5.5 ZKRM08.2 1200 800 55
3~4 5~6 10~12 3 4.5 9 ZKRM11.2 1500 1100 110
8~9 11~13 20~22 6 9.5 17 ZKRM13.2 1700 1300 185
9~10 14~16 26~34 8 12 24 ZKRM15.2 1900 1500 250
12~14 20~23 40~50 10 17 36 ZKRM17.2 2100 1700 355
15~17 24~26 50~60 13 20 43.5 ZKRM19.2 2300 1900 450
18~20 27~30 60~75 15 22.5 55 ZKRM20.2 2400 2000 560
23~25 40~50 85~110 20 35.5 77 ZKRM22.3 2600 2200 710



Ball Mill Configuration Table

Hourly Capacity
(t/h)
Annual Capacity
(×10kt/a)

Ball Mill Model

Separator Model
Ball Mill Motor Power
(kW)
Blast Furnace Slag Cement Raw Material Blast Furnace Slag Cement Raw Material
1.5~2 3~4 6~8 1.5 3 5.5 Φ1.2×4.5m NHX200 55
3~4 5~6 10~12 3 4.5 9 Φ1.5×5.7m NHX300 130
8~9 11~13 20~22 6 9.5 17 Φ2.2×9m NHX400 475
9~10 14~16 26~34 8 12 24 Φ2.2×11m NHX400 570
12~14 20~23 40~50 10 17 36 Φ2.4×11m NHX500 630
15~17 24~26 50~60 13 20 43.5 Φ2.4×13m NHX500 800
18~20 27~30 60~75 15 22.5 55 Φ2.6×10m NHX600 1000
23~25 40~50 85~110 20 35.5 77 Φ3.0×11m NHX700 1250
