High Capacity Grinding Ball Mill Machine Durable Large Application Range

High Capacity Grinding Ball Mill Machine Durable Large Application Range

ball mill machine

ball mill mining

Place of Origin:

CHINA

Brand Name:

ZK CORP

Certification:

ISO,CE

Model Number:

Ball Mill Prices

Contact Us
Request A Quote
Product Details
Product Name:
Indsutrial Ball Mill Price,ball Mill Price In Pakistan,ball Mill Price List
Ball Mill Cylinde:
1200mm-3600mm
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Motor Type:
AC Motor
Spare Parts:
Supply All Using Life
Voltage:
220V/380V/440
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
By standard container, in bulk or as client's request
Delivery Time
30days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
30 Per Month
Product Description
High Capacity Ball Mill Prices Grinding Ball Mill Machine



Ball Grinding Machine —Product Advantages:

1. Energy-saving grate ball mill is easy to start and save energy up to 20-30%

2. Energy-saving grate ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores



Ball Grinding Machine — Product feature:

1 The transmission machinery of Energy-saving grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%

2 Energy-saving grate ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores, which enhances grinding action and ore lifting capacity and decreases energy consumption.

3 Energy-saving grate ball mill adopts whole milling house, which makes it easy for construction and installation.

4 Energy-saving grate ball mill has bigger discharge opening and huge processing capacity.

5 Energy-saving grate ball mill is equipped with oil-mist lubrication device which guarantees smooth operation of gears.

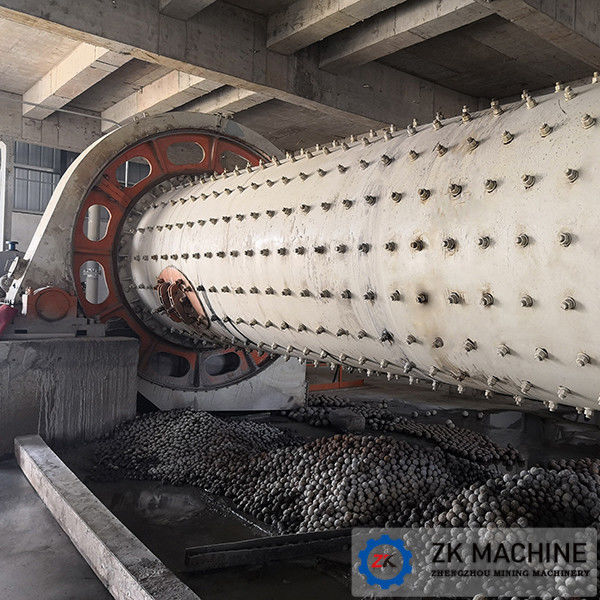

High Capacity Grinding Ball Mill Machine Durable Large Application Range 0



Ball Grinding Machine — Product application:

Mill is essential and widely used equipment for raw material crushing. Its main component is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded. The falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Acceptable ore particles are carried away by water in wet mill, or by air in dry mill.

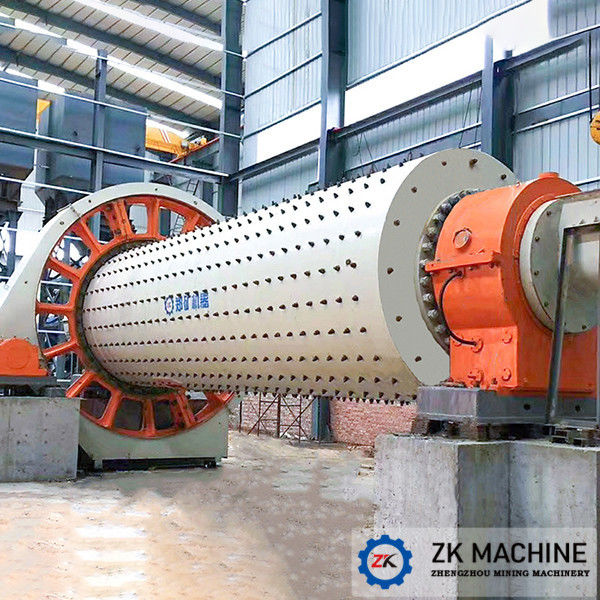

High Capacity Grinding Ball Mill Machine Durable Large Application Range 1



Ball Grinding Machine — Product Principle:

Its main component is a cylinder with bigger diameter and smaller length which can revolve via the transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded, because the falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Acceptable ore particles are carried away by water by wet mill, or by air by dry mill. The discharge opening is equipped with a discharge grate, and the ore pulp horizon of discharge opening is low. These two factors prevent ores from being overly grinded, and iron balls from being dismissed. Under same circumstance, the processing capacity of energy-saving grate ball mill is bigger. Rolling bearings contribute enormous energy saving.



High Capacity Grinding Ball Mill Machine Durable Large Application Range 2



Technology Parameter:

Model

Drum Size

(m)

Speed

(r/min)

Ball Weigh(t)

Feed Size

(mm)

Output Size

(mm)

Capacity

(t/h)

Power

(kW)

MQZ1224 1.2X2.4 31 4.8 0-20 0.07-0.6 0.4-6.8 37
MQZ1245 1.2X4.5 31 5.2 0-20 0.07-0.6 1.6-12 45
MQZ1530 1.5X3.0 27.5 8.1 0-25 0.07-0.4 2.9-16.5 65
MQZ1557 1.5X5.7 29.2 15 0-25 0.07-0.4 4-25 95
MQZ1645 1.6X4.5 27.5 14 0-25 0.07-0.4 4-24 95
MQZ1836 1.8X3.6 23.9 11 0-25 0.07-0.4 8-40 132
MQZ1864 1.6X6.4 23.9 18.5 0-25 0.07-0.4 8-60 155
MQZ2130 2.1X3.0 23.8 19.8 0-25 0.07-0.4 6.5-36 155
MQZ2136 2.1X3.6 23.8 27 0-25 0.07-0.4 8-61 155
MQZ2265 2.2X6.5 21.6 28 0-25 0.07-0.4 8-35 210
MQZ2430 2.4X3.0 22 22.5 0-25 0.07-0.4 7-92 210
MQZ2436 2.4X3.6 22 28 0-25 0.07-0.4 7-95 210
MQZ2465 2.4X6.5 22 36 0-25 0.07-0.4 7-110 260
MQZ2736 2.7X3.6 21.9 39 0-25 0.07-0.4 13-140 310
MQZ2745 2.7X4.5 21.9 43 0-25 0.07-0.4 13-150 320
MQZ2836 2.8X3.6 20 42 0-25 0.07-0.4 15-140 310
MQZ3060 3.0X6.0 19 70 0-25 0.07-0.4 100-145 630
MQZ3245 3.2X4.5 18.6 65 0-25 0.07-0.4 100-145 630
MQZ3260 3.2X6.0 18.6 86 0-25 0.07-0.4 120-150 800
MQZ3645 3.6X4.5 17.8 90 0-25 0.07-0.4 120-220 1000
MQZ3660 3.6X6.0 17.8 120 0-25 0.07-0.4 50-230 1250
