150TPD Active Lime Production Line , Hydrated Lime Processing Production Line

Product Description

150tpd Hydrated Lime Processing Production Line Machines For Sale

Capacity:50-800(t/d)

Main Materials:Limestone

Main Equipment:vertical preheater, lime kiln, bag filter

Lime Activity:≥360mL

We will select the most workable and efficient and economical solution based o the clients' specific requirement and conditions.



Energy Saving Rotary Lime Kiln Process

Rotary kiln is one kind of furnace which is widely used for calcined active lime production in the world. It is also widely used in many industries such as construction materials, metallurgy, chemical and environmental protection. The energy-saving rotary lime kiln has the advanced structure and stable operation. It adopts the vertical preheater with low pressure loss which can effectively improve the preheating effects. The raw materials’ decomposition rate in the vertical preheater can reach to 30% before entering into the rotary kiln. It is also suitable for different fuels including pulverized solid fuel, liquid fuel and gas fuel. The final lime products have high activity. This kind of rotary kiln already have been widely used in the steel industry and chemical industry.



Traditional Rotary Lime Kiln Process

The long rotary lime kiln has the characteristics of simple structure and stable operation. It increases the length of the rotary kiln cylinder to improve the preheating effect, and after preheating, the limestone is entering into the calcination zone for decomposition; The limestone feeding size can be 10 ~20 mm, 20~40 mm. It can use various fuels including pulverized solid fuel, liquid fuel and gas fuel. The final lime or dolime product has relatively higher activity. This kind of rotary kiln is suitable for middle & small production lines, and is suitable for the lime production with limestone with small sizes or lower heat strength.



Mixed Burning Vertical Lime Kiln Process

The qualified raw materials and solid fuels are mixed uniformly according to a certain proportion and then sent to the vertical kiln through a single bucket elevator for calcination. After calcination, the final lime products are discharged from the bottom of the vertical kiln through a discharge device to the conveyor, and the conveyor sends the final lime products to the storage silo. The hot flue gas generated by calcination will firstly go into the dust collecting system, and then the clean flue gas will be emitted through chimney to the atmosphere.

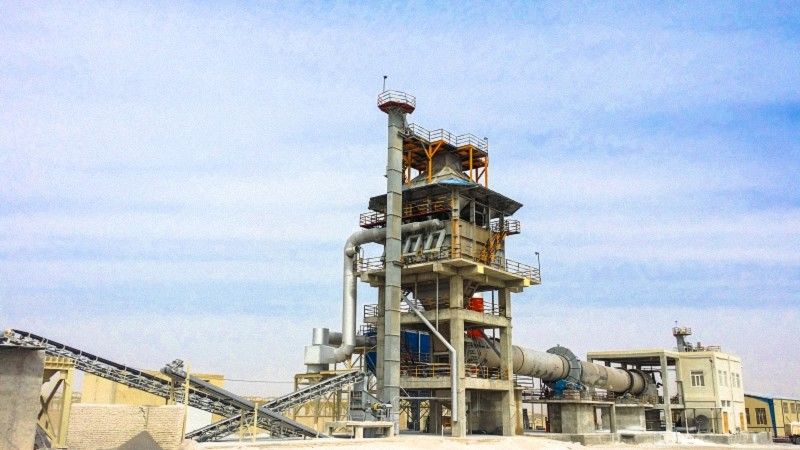

This Buyer is located in North Sudan. The final product of this plant is used for steel plant. Shaft kiln is taken for it and the production capacity is 100TPD.

Screen Plate details according to the buyer's requirement:

Fuel:LPG and Diesel

Raw Material Size:300mm

Production Capacity:100TPD

Heat Value of LPG:11.500 kcal/kg.

Service provided to client during this process:

1. Initial Design was provided according to the client’s requirement and then the contract was signed after the initial design is approved by the buyer.

2. After the down payment was available to our account, the final design was made and provided which was also agreed by the buyer.

3. All the equipment were put into production and good-quality product are ensured.

Through continuous communication, the trust from client was enjoyed by us. And our factory was also thought highly by client which contributed a lot to the contract signing.
