China Active Lime Production Line manufacturer

Multipurpose Cement Production Line , Cement Clinker Grinding Plant 50-3000 TPD

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: ore dressing line
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Set / Sets per Month
Contact Now

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 12 Months Color: As Client's Request
Application: Cement Production Line Category: Other Ore
Port: Qingdao, Shanghai, Tianjin Capacity: 50 T/d-3000 T/d
Brand Name: ZK Corp
High Light:

cement production plant

,

cement manufacturing plant

Product Description

50~3000 TPD Cement Clinker Grinding Plant For Sale



Cement Plant Specifications
50~3000 ton tpd cement plant, turn-key services. Dry process, rotary kiln
cement production line, clinker grinding plant

Cement plant, cement factory, clinker grinding plant, dry cement plant

Cement production line with 50~3000 ton tpd capacity; turn-key services. dry process, use rotary kiln.

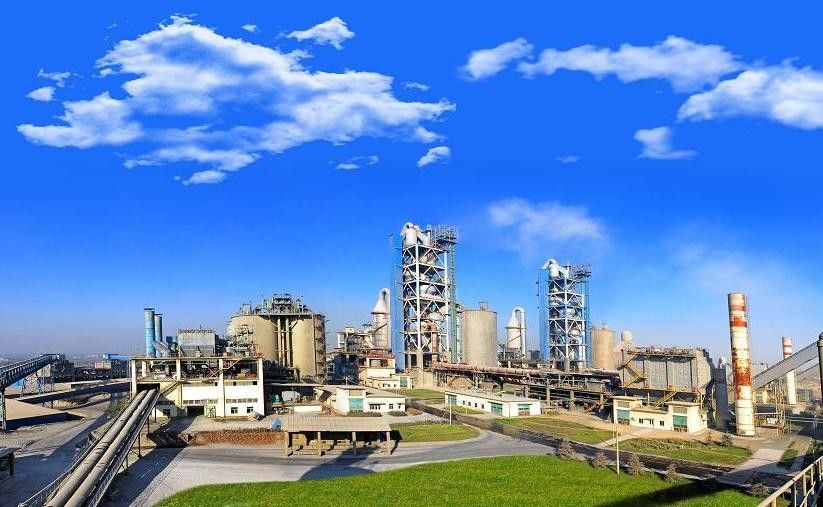

Multipurpose Cement Production Line , Cement Clinker Grinding Plant 50-3000 TPD 0



Cement Clinker Grinding Plant with new price

Cement Clinker Grinding Plant Main Materials:Clinker,Gypsum, Additives
ZK Corp is the professional manufacturer of cement equipment, can offer complete solution for grinding station, and improves production efficiency, reduces power consumption and environmentally friendly.


PRODUCTION TECHNOLOGY
After gypsum, clinker and limestone are measured by the belt weigher, they will be mixed together in accordance with particular proportions, and then sent to the stable weighing warehouse. During this process, magnetic metals are removed by the iron remover from these materials. Then mixed materials will be sent into the rolling machine to be crushed. After crushed, they will be sent to the powder separator, in which coarse powder will be sent back to the grinding mill while the fine one will be sent to the elevator for finished products. Finally, they will be sent to finished product storage. Meanwhile, dusty gas from the grinding mill will be purified by the environmental protection equipment before discharged into the atmosphere.

Multipurpose Cement Production Line , Cement Clinker Grinding Plant 50-3000 TPD 1



CONFIGURATION

No. Item Unit Closed circuit production
1 Factory capacity ×10³t/a 100 160 250 350 500
2 Main material usage
Clinker t/a 80000 128000 200000 280000 400000
Gypsum t/a 5000 8000 12500 17500 25000
Pozzolana t/a 15000 24000 37500 52500 75000
3 Energy consumption
Fresh water t/a 4000 7000 9000 12000 17000
Electrical kWh/a 3600000 5700000 8500000 1200000 1.7E+07
4 Layout transportation
Land area 15000 18000 20000 22000 24000
5 Project invest
Production line total invest Ten 600 1000 1500 2000 2850
    thousand
6 Workers   30 35 35 35 35
7 Main equipment
Ball mill   Φ2.2×6.5m Φ2.4×11m Φ3×11m Φ3.2×13m Φ3.5×13m
      14t/h 24t/h 35t/h 50t/h 70t/h
      380kW 630kW 1250kW 1600kW 2000kW
Belt conveyor   B500 B650 B650 B800 B1000
Mill outlet bucket elevator   TH315 TH400 NE100 NE150 NE200
Air classifier   NHX400 NHX600 NHX700 NHX800 NHX1000
      (Osepa N250) (Osepa N500) (Osepa N750) (Osepa N1000) (Osepa N1500)
Bag filter   PPC32-4 PPC32-6 PPC64-5 PPC64-6 PPC64-7
      (PPC64-6) (PPC96-7) (PPC96-2×5) (PPC96-2×6) (PPC96-2×10)
Finished production bucket elevator   TH250 TH315 NE50 NE100 NE100
Screw conveyor   LS400 LS400 LS500 - -
Packer   Three nozzle Four nozzle Six nozzle Eight nozzle Eight nozzle
Belt weigher   B500×2000 B650×2500 B800×2500 B800×2500 B1000×3500





FAQ:

Q: Are you a factory or a trading company?

A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.



Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to Youtube.



Q: What should I take care when using the machine?

A: Keep the machine away from thinner and other chemical liquid.



Q: How to maintain the machine?

A: Check the connection part and clean the screen frame regularly.



Q: How can I pay my order?

A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.



Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.

Multipurpose Cement Production Line , Cement Clinker Grinding Plant 50-3000 TPD 2

Multipurpose Cement Production Line , Cement Clinker Grinding Plant 50-3000 TPD 3
