China Active Lime Production Line manufacturer

Hydrated Lime Ball Mill For Precipitated Calcium Carbonate Grinding

Product Details:
Place of Origin: China
Brand Name: ZK
Certification: CE ISO Certification
Model Number: MQZ1224-MQZ3660
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard container or as customers' requirements
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80 Set / Sets per Month
Contact Now

Detail Information

Brand Name: ZK Corp Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Capacity: 0.8-230t/h Material: Dolomite, Ferrosilicon, Fluorite Powder
Motor Type: AC Motor Spare Parts: Supply All Using Life
Voltage: 220V/380V/440
High Light:

ball mill machine

,

ball mill mining

Product Description

Ball Mill for Hydrated Lime and Precipitated Calcium Carbonate Grinding



Introduction:

Ball Mill is a key equipment to grind all kinds of ores and other materials. Which is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. Ball mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.

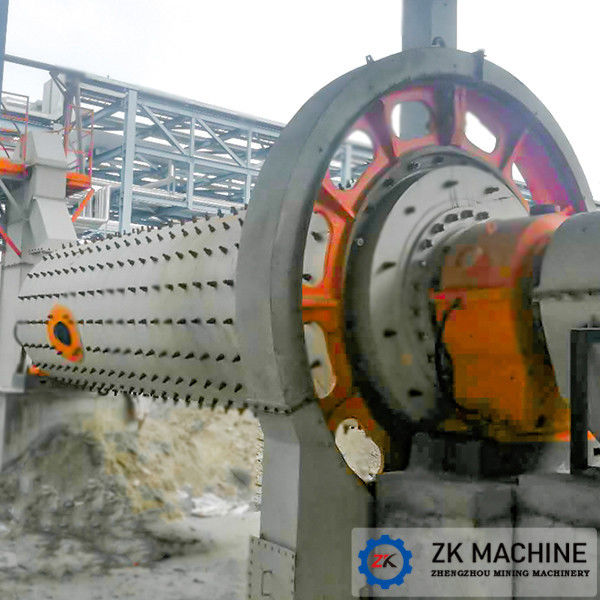

Hydrated Lime Ball Mill For Precipitated Calcium Carbonate Grinding 0



Ball Mill Organization Character:
By feeding department, the exiting material department, the rotor, the transmission department (speed reducer, small transmission gear, electrical machinery, electric control) and so on main part composes. The midlevel axis uses the steel casting, the inside lining is detachable, rotates the big wheel to use the casting to roll the tooth processing, tube in vivo besets with by the wear-resisting backing, has the good resistance to wear. It revolves steadily, operation reliable.
Note: According to material and emissions mine type, may choose the dry ball mill and the wet check ball mill.

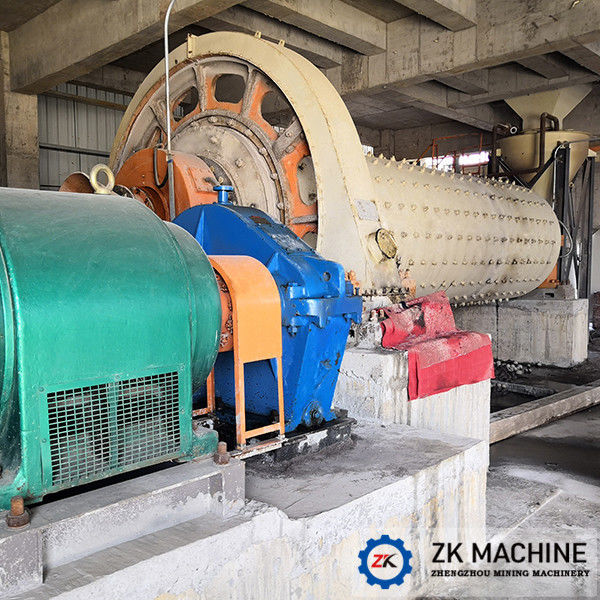

Hydrated Lime Ball Mill For Precipitated Calcium Carbonate Grinding 1



Working Principle of Ball Mill:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Hydrated Lime Ball Mill For Precipitated Calcium Carbonate Grinding 2



Technical Specifications:



Model

Drum Size

(m)

Speed

(r/min)

Ball Weigh(t)

Feed Size

(mm)

Output Size

(mm)

Capacity

(t/h)

Power

(kW)

MQZ1224 1.2X2.4 31 4.8 0-20 0.07-0.6 0.4-6.8 37
MQZ1245 1.2X4.5 31 5.2 0-20 0.07-0.6 1.6-12 45
MQZ1530 1.5X3.0 27.5 8.1 0-25 0.07-0.4 2.9-16.5 65
MQZ1557 1.5X5.7 29.2 15 0-25 0.07-0.4 4-25 95
MQZ1645 1.6X4.5 27.5 14 0-25 0.07-0.4 4-24 95
MQZ1836 1.8X3.6 23.9 11 0-25 0.07-0.4 8-40 132
MQZ1864 1.6X6.4 23.9 18.5 0-25 0.07-0.4 8-60 155
MQZ2130 2.1X3.0 23.8 19.8 0-25 0.07-0.4 6.5-36 155
MQZ2136 2.1X3.6 23.8 27 0-25 0.07-0.4 8-61 155
MQZ2265 2.2X6.5 21.6 28 0-25 0.07-0.4 8-35 210
MQZ2430 2.4X3.0 22 22.5 0-25 0.07-0.4 7-92 210
MQZ2436 2.4X3.6 22 28 0-25 0.07-0.4 7-95 210
MQZ2465 2.4X6.5 22 36 0-25 0.07-0.4 7-110 260
MQZ2736 2.7X3.6 21.9 39 0-25 0.07-0.4 13-140 310
MQZ2745 2.7X4.5 21.9 43 0-25 0.07-0.4 13-150 320
MQZ2836 2.8X3.6 20 42 0-25 0.07-0.4 15-140 310
MQZ3060 3.0X6.0 19 70 0-25 0.07-0.4 100-145 630
MQZ3245 3.2X4.5 18.6 65 0-25 0.07-0.4 100-145 630
MQZ3260 3.2X6.0 18.6 86 0-25 0.07-0.4 120-150 800
MQZ3645 3.6X4.5 17.8 90 0-25 0.07-0.4 120-220 1000
MQZ3660 3.6X6.0 17.8 120 0-25 0.07-0.4 50-230 1250
