31r/Min 6.8TPH Ball Mill Grinder No Dust Spilling Clean Environment

Product Details:
Place of Origin: CHINA
Brand Name: ZK CORP
Certification: ISO,CE
Model Number: Ф1.2x4.5-Ф4.2x13
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: mineral feldspar ball mill packing:Standard container or customers' requirements.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Per Month
Contact Now

Detail Information

Product Name: Low Energy Consumption Ball Mill Grinder Grinding Body(t): 2-224
Type: Ф1.2x4.5-Ф4.2x13 Motor Type: AC Motor
Warranty: 1 Year Application: Metallurgical, Chemical, Electricity And Other Industrial
Color: Customized Voltage: 220V/380V/440V
Spare Parts: Supply All Using Life Shipping Port: Shanghai, Qingdao, Tianjin
High Light:

31r/Min Ball Mill Grinder

,

6.8TPH Ball Mill Grinder

,

6.8TPH vertical ball mill

Product Description

Low Energy Consumption Ball Mill Grinder No Dust Spilling Clean Environment





Ball Mill Introduction:

In the production industries of cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation and glass ceramics, ball mills are the key equipment for crushing materials after they are crushed. It can dry or wet pulverize various ores and other grindable materials. The ball mill is suitable for grinding various ores and other materials, and is widely used in mineral processing, building materials and chemical industries.



There are many types of ball mills, which can be divided into dry and wet grinding methods. According to the different ways of mine discharge, it can be divided into two types: lattice type and overflow type. According to the shape of the barrel, it can be divided into four types: short barrel ball mill, long barrel ball mill, tube mill and cone mill.

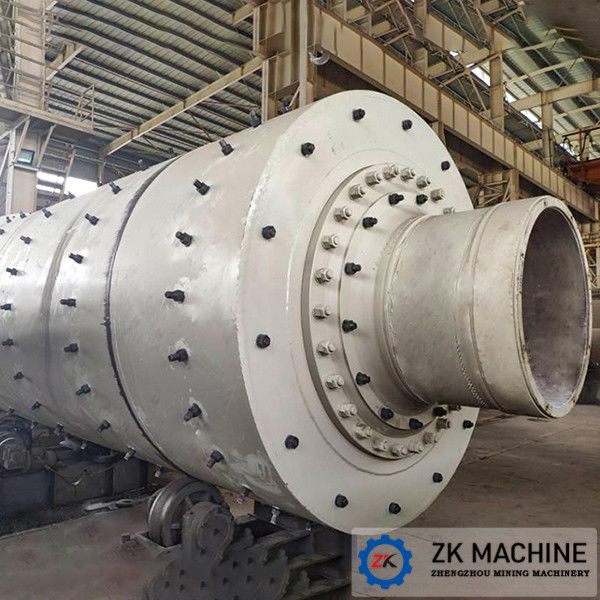

31r/Min 6.8TPH Ball Mill Grinder No Dust Spilling Clean Environment 0



Ball Mill Principle Overview:

The ball mill is composed of a horizontal cylinder, a hollow shaft for feeding and discharging materials, and a grinding head. The cylinder is a long cylinder. The cylinder is equipped with an abrasive body. The cylinder is made of steel plate. A steel lining plate is fixed to the cylinder. The abrasive body generally, it is a steel ball, and it is loaded into the cylinder according to different diameters and a certain proportion. The grinding body can also be used in the steel section. The material is selected according to the particle size of the grinding material. The material is loaded into the barrel by the hollow shaft at the feed end of the ball mill. When the barrel of the ball mill rotates, the grinding body is attached to the barrel lining plate due to the inertia and centrifugal force and friction. Taken away by the cylinder, when brought to a certain height, it is thrown down due to its own gravity. The falling abrasive body crushes the material in the cylinder like a projectile.





Indication of Order:

When selecting, the user should indicate the ball mill rotation direction, the discharge way, We can change the bearing model as User requirements

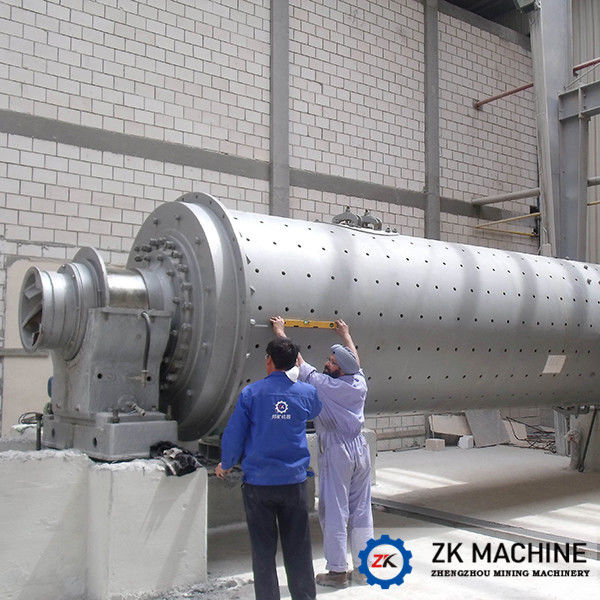

31r/Min 6.8TPH Ball Mill Grinder No Dust Spilling Clean Environment 1



Competitive Advantages:
1. High grinding efficiency and low energy consumption;
2. The product fineness is uniform and the product is smooth;
3. Low vibration, low noise, good sealing of the equipment, no dust overflow, clean environment, meet national environmental protection requirements;
4. The special cement mill can be designed and manufactured according to the different demands of users on the fineness and output of grinding.

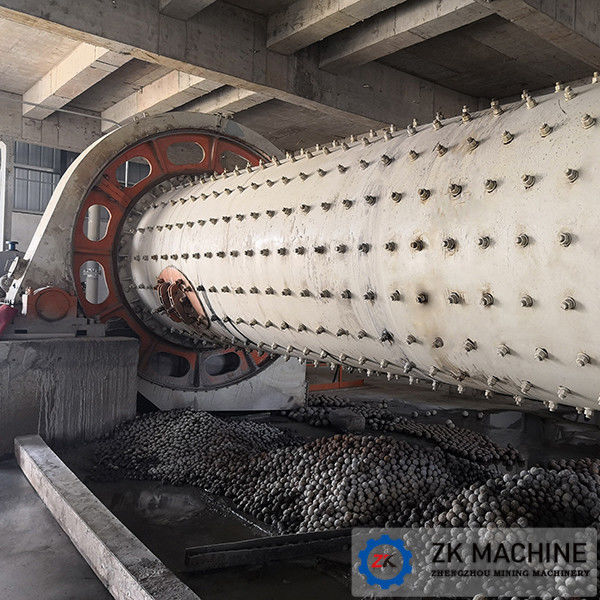

31r/Min 6.8TPH Ball Mill Grinder No Dust Spilling Clean Environment 2



Specifications of Mineral Ball Mill:



Model

Drum Size

(m)

Speed

(r/min)

Ball Weigh(t)

Feed Size

(mm)

Output Size

(mm)

Capacity

(t/h)

Power

(kW)

MQZ1224 1.2X2.4 31 4.8 0-20 0.07-0.6 0.4-6.8 37
MQZ1245 1.2X4.5 31 5.2 0-20 0.07-0.6 1.6-12 45
MQZ1530 1.5X3.0 27.5 8.1 0-25 0.07-0.4 2.9-16.5 65
MQZ1557 1.5X5.7 29.2 15 0-25 0.07-0.4 4-25 95
MQZ1645 1.6X4.5 27.5 14 0-25 0.07-0.4 4-24 95
MQZ1836 1.8X3.6 23.9 11 0-25 0.07-0.4 8-40 132
MQZ1864 1.6X6.4 23.9 18.5 0-25 0.07-0.4 8-60 155
MQZ2130 2.1X3.0 23.8 19.8 0-25 0.07-0.4 6.5-36 155
MQZ2136 2.1X3.6 23.8 27 0-25 0.07-0.4 8-61 155
MQZ2265 2.2X6.5 21.6 28 0-25 0.07-0.4 8-35 210
MQZ2430 2.4X3.0 22 22.5 0-25 0.07-0.4 7-92 210
MQZ2436 2.4X3.6 22 28 0-25 0.07-0.4 7-95 210
MQZ2465 2.4X6.5 22 36 0-25 0.07-0.4 7-110 260
MQZ2736 2.7X3.6 21.9 39 0-25 0.07-0.4 13-140 310
MQZ2745 2.7X4.5 21.9 43 0-25 0.07-0.4 13-150 320
MQZ2836 2.8X3.6 20 42 0-25 0.07-0.4 15-140 310
MQZ3060 3.0X6.0 19 70 0-25 0.07-0.4 100-145 630
MQZ3245 3.2X4.5 18.6 65 0-25 0.07-0.4 100-145 630
MQZ3260 3.2X6.0 18.6 86 0-25 0.07-0.4 120-150 800
MQZ3645 3.6X4.5 17.8 90 0-25 0.07-0.4 120-220 1000
MQZ3660 3.6X6.0 17.8 120 0-25 0.07-0.4 50-230 1250
